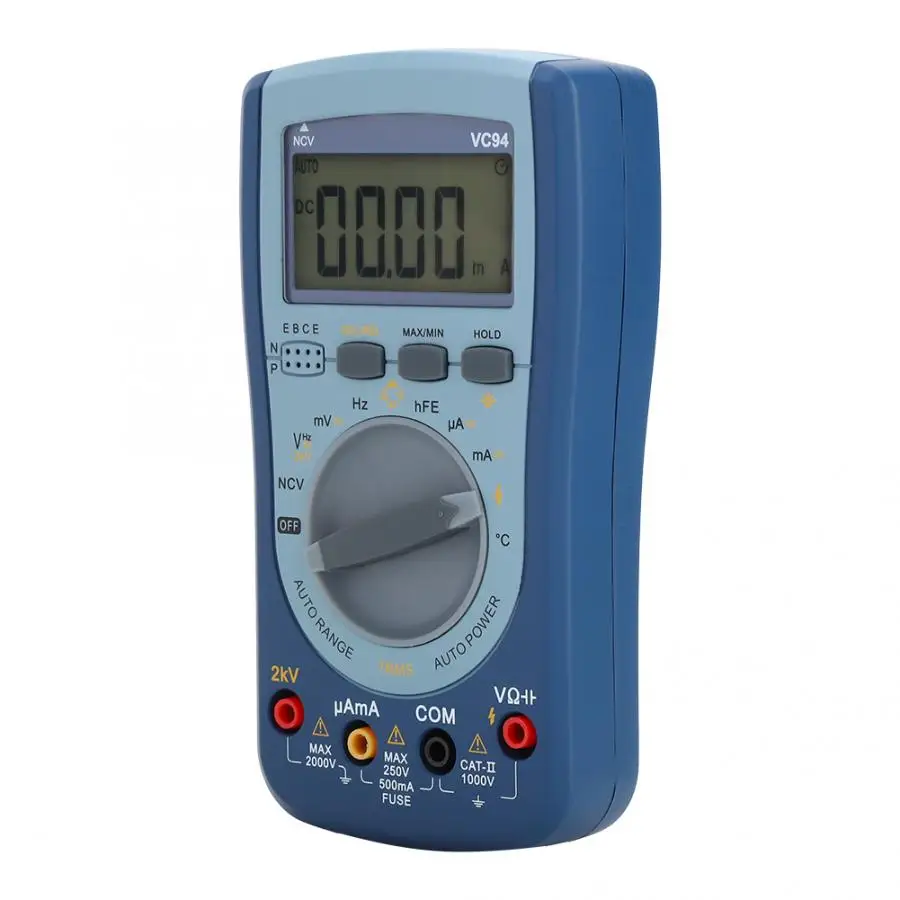

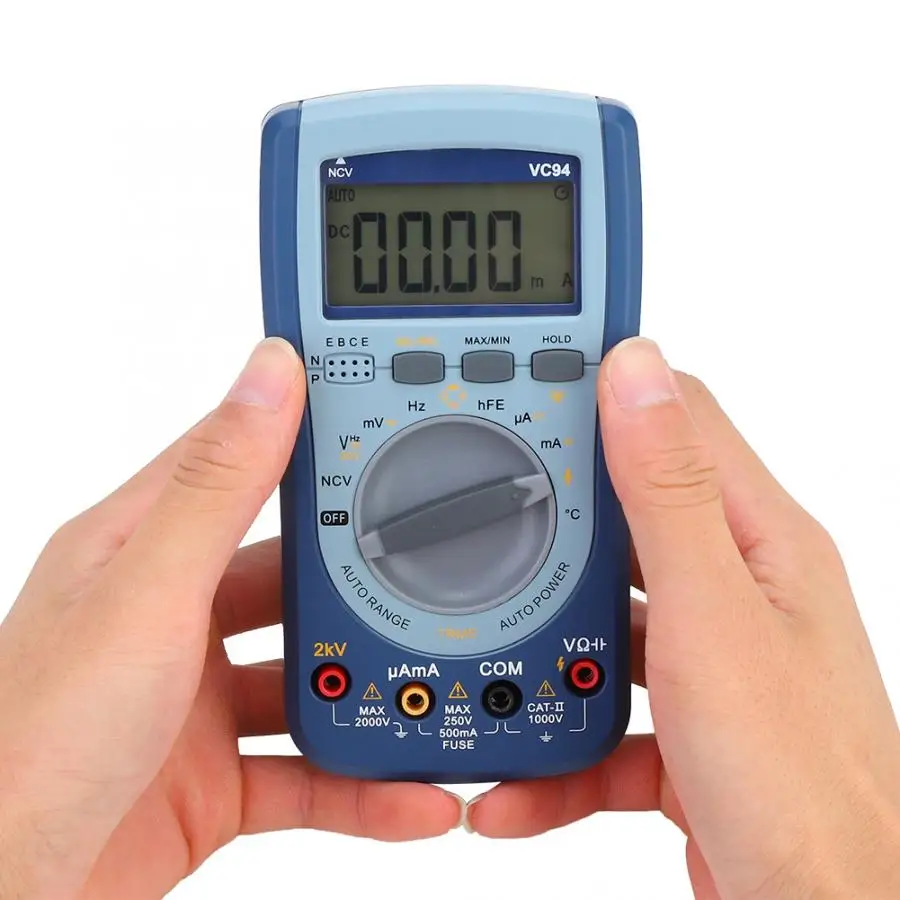

VC94 Automatic Range Digital DC/ AC Voltage Current Multimeter Resistance Meter

Feature:

1. Features stable self-recovery full protection function, no replacement of fuse.
2. Fully functional automatic range, prevent the wrong range selection caused by burning out the instrument
3. It has measuring resistance, capacitance, frequency and triode/diode/on/off function.
4. High precision ac/dc mV, ac/dc 2KV high voltage, high voltage frequency.
5. NCV (non - contact electric field measurement) has the function of fire line discrimination.
6. It also has data retention/maximum/minimum/relative value function, highlight backlight, automatic shutdown.
7. The k-type point temperature probe is used to measure temperature with wide range and fast response speed.
8. High precision low noise A/D converter, 2KHz bandwidth true RMS function.

Specification:

Condition: 100% Brand New
Item Type: Multimeter
Material: ABS

Maximum Display	3999 Auto-polarity	Over-load Display	Maximum Display “OL”	Static Power	<2mA
						Measuring Method	High precision A/D conversion	Power	2 x AAA (Not Included)	Size	155 x 82 x 38mm / 6.1 x 3.2 x 1.5in
Sample Rate	About 3 times/s	Low pressure Indication	Display Battery Symbol	Weight	142g / 5oz
Working Temperature	0°C~40°C，Relative humidity <80%RH
						Storage Environment Temperature	-10°C~50°C，RH<85%RH
Function	Range (VC94)		Resolution	Uncertainty
DC Voltage	DC 400mV~1000V		0.1mV	±（1.0%+5d）
AC Voltage	AC 4V~750V		1.0mV	±（2.0%+5d）
mV Voltage	40mV~400mV		0.01mV	±（1.0%+5d）
DC/AC 2KV Voltage	500V~2000V		1V	±（3.0%+5d）
DC/AC Current	400μA/4000μA		0.1μA	±（1.25%+5d）
	40mA/200mA		10μA	±（1.25%+5d）
Resistance	400Ω~40MΩ		0.1Ω	±（1.0%+5d）
Frequency	10Hz~20MHz		0.001Hz	±（0.5%+3d）
	20MHz~30MHz		0.001MHz	±（1.0%+5d）
Capacitance	4nF~400nF		1pF	±（4.0%+15d）
	400nF~4mF		1μF	±（10%+15d）
Temperature	-20°C~250°C		1°C	±（2.0%+3d）
Diode and on-off test	Open circuit voltage > 2.2v, On and off to determine resistance: < 50 Ω with buzzer hints
Triode	1b= about 1 micron A, NPN/PNP 0-1999
						Other Functions	Automatic range, true RMS value, relative value, inductive fulfillment, highlight backlight, data saving, maximum and minimum value

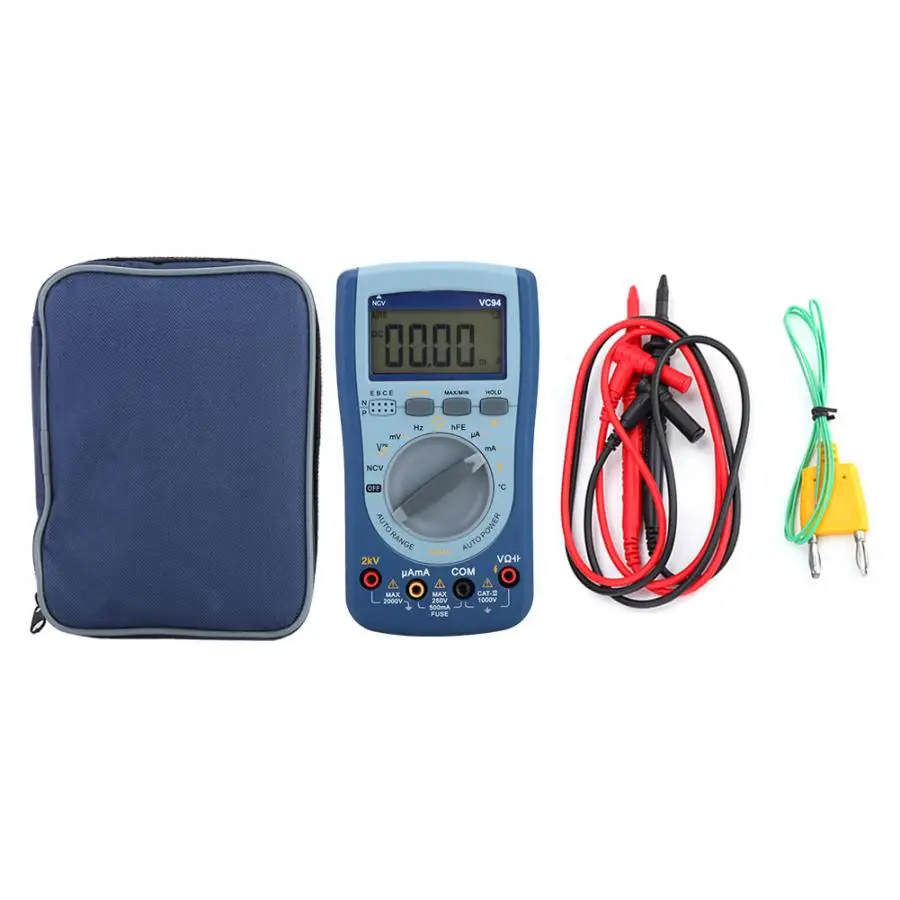

Package List:

1 x Multimeter

1 x Instruction

1 x Bag

1 x Thermocouple

1 Pair Test Leads
