Описание
Features:
This instrument can be used to measuring DC voltage, voltage, DC current, resistance and temperature.
LCD screen and digital display, reading cury and speediness.
Stable performance, lower power consumption, higher reliability and safety.
Specifications:

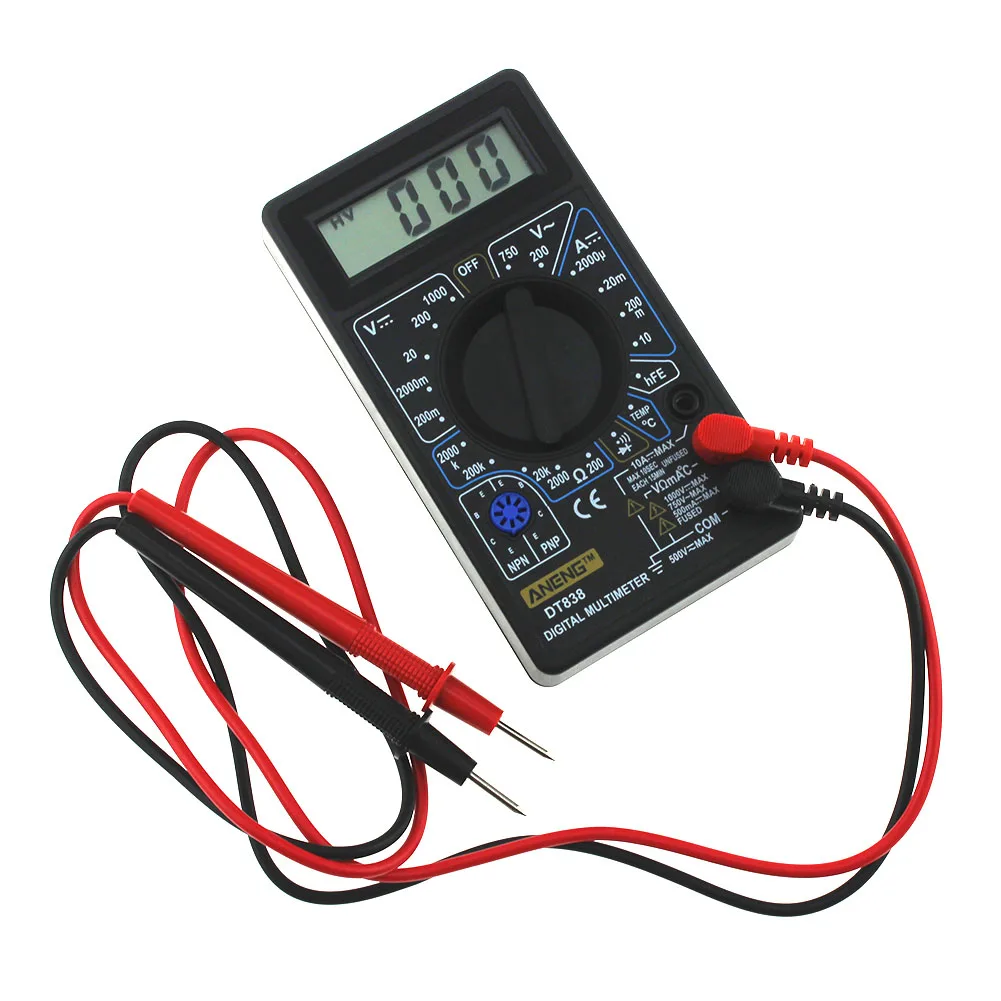

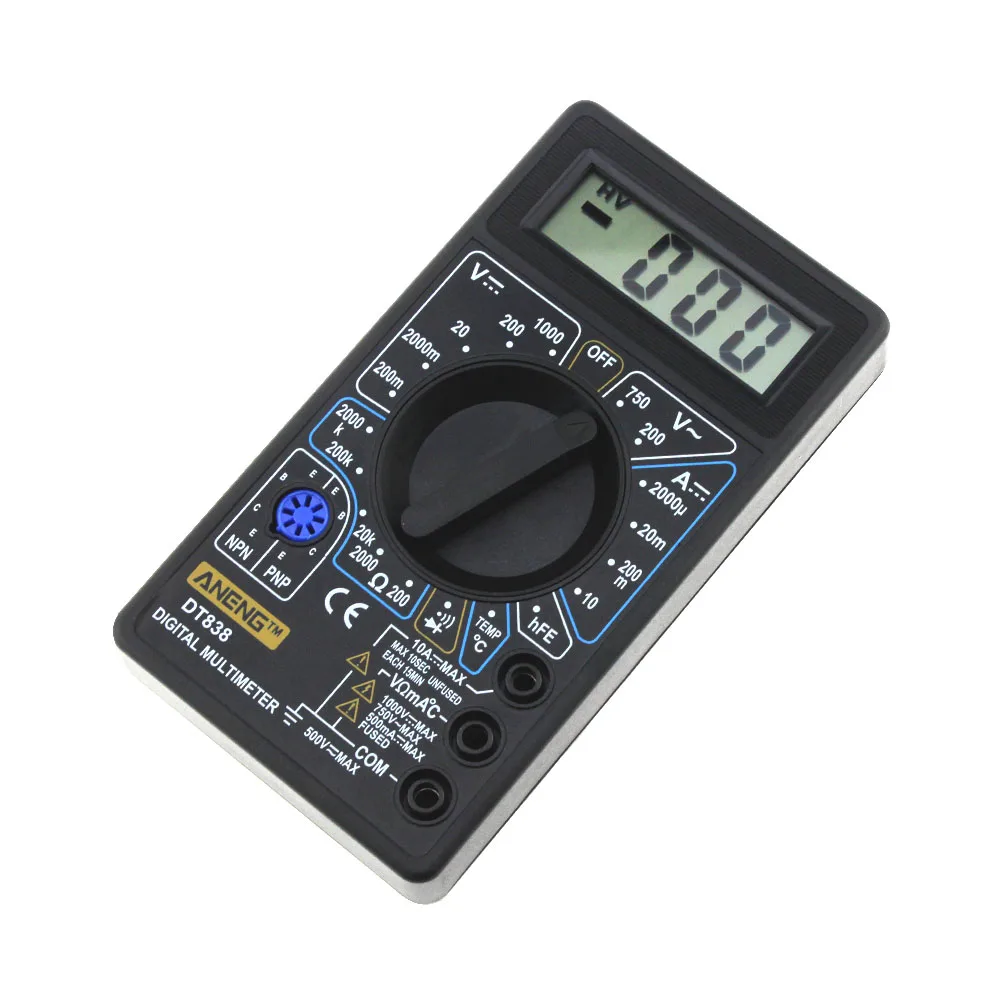

Model: DT838
Material: ABS
Color: blk
DC Voltage: 200mV-1000V ±(0.5%+2dgt)
Voltage: 200-750V ±(1.2%+10dgt)
DC Current: 2000uA-10A ±(1.0%+2dgt)
Resistance: 200Ω-2MΩ ±(0.8%+2dgt)
Temperature: -40°C-1000°C ±(3.0+2dgt)
Diode Test: Yes
Transistor Test: Yes
Continuity Buzzer: Yes
Power Supply: 9V Battery 6F22(Not Included)
Display Size: 16×48mm
Maximum Display: 1999
Size: (Approx) 122.2x68x21.5mm

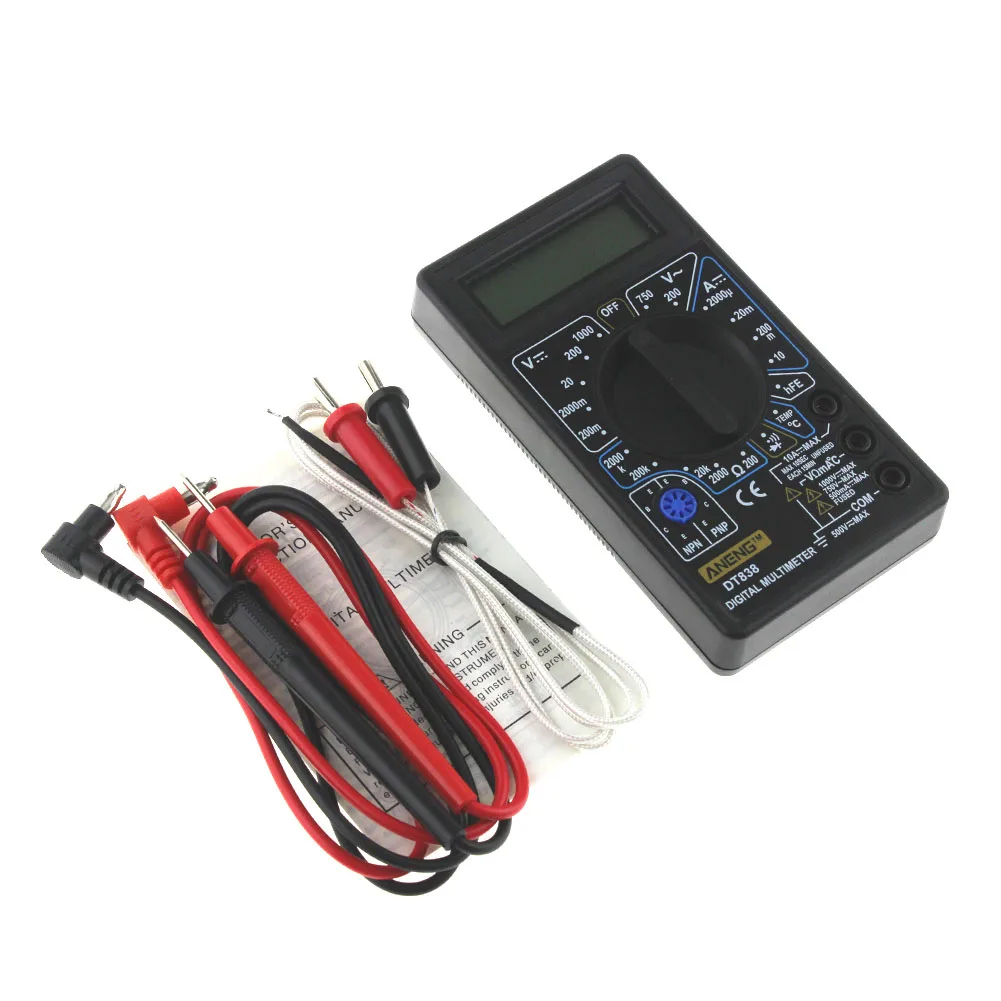

Pkage Included:
1 PC x Digital Multimeter
1 PC x Test Line
1 PC x Temperature Probe
1 PC x Manual
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.











Характеристики
- Бренд
- Woopower
- Материалы для самостоятельного изготовления
- Электрический
- Номер модели
- DT838
- AC Напряжение
- 200-750V ±(1.2%+10dgt)
- Размеры
- 122.2*68*21.5mm
- Диапазон измерения сопротивления
- 200Ω-2MΩ ±(0.8%+2dgt)
- DC Напряжение
- 200mV-1000V ±(0.5%+2dgt)
- Рабочая температура
- -40°C-1000°C ±
- Тип дисплея
- Цифровой дисплей
- Постоянного тока
- 2000uA-10A ±(1.0%+2dgt)
- Power Supply
- 9V Battery 6F22(Not Included)
- Display Size
- 16*48mm
- Maximum Display
- 1999
- Material
- ABS
