Описание

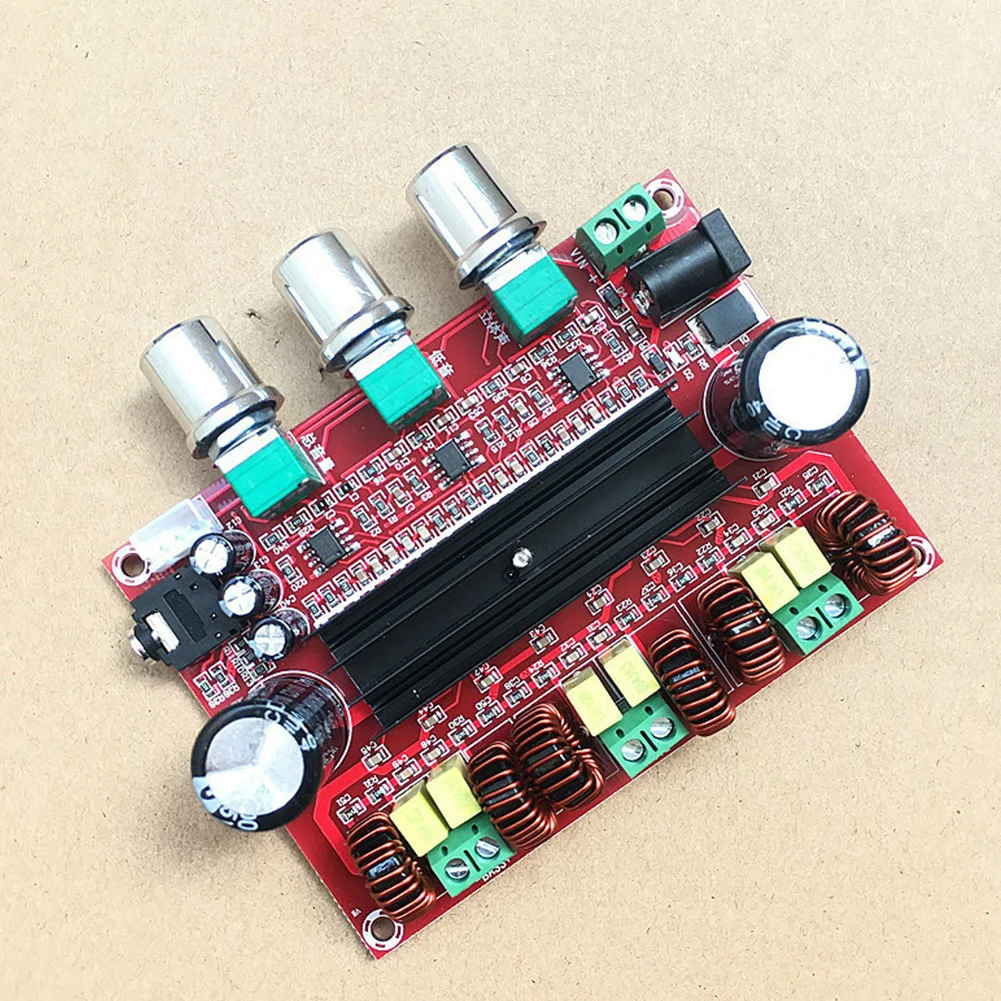

Features:The amplifier board adopts two imported TPA3116D2 digital amplifier chip as the core,
one piece as left and right channel power amplifier,other piece as pre-bridge briver with NE5532 subwoofer.
With a small, high effeciency, high power characteristics.
This amplifier board have two power input and Two audio input ,you can choose each one.
Output power: 80W*2(MAX)+100W*1 (Subwoofer).
Specifications:
Color: As Shown
Product name: 2.1 channel audio amplifier
Chip Select:TPA3116D2
Voltage: DC12-24V
Output power: 80W*2(MAX)+100W*1 (Subwoofer)
Output Impedance:4-8 ohms
Frequency range:14-100Khz
SNR:100db
Number of channels:3 (left channel,right channel,subwoofer)
Switch frequency:1.2MHz
Size: (Approx) 100*70*30mm

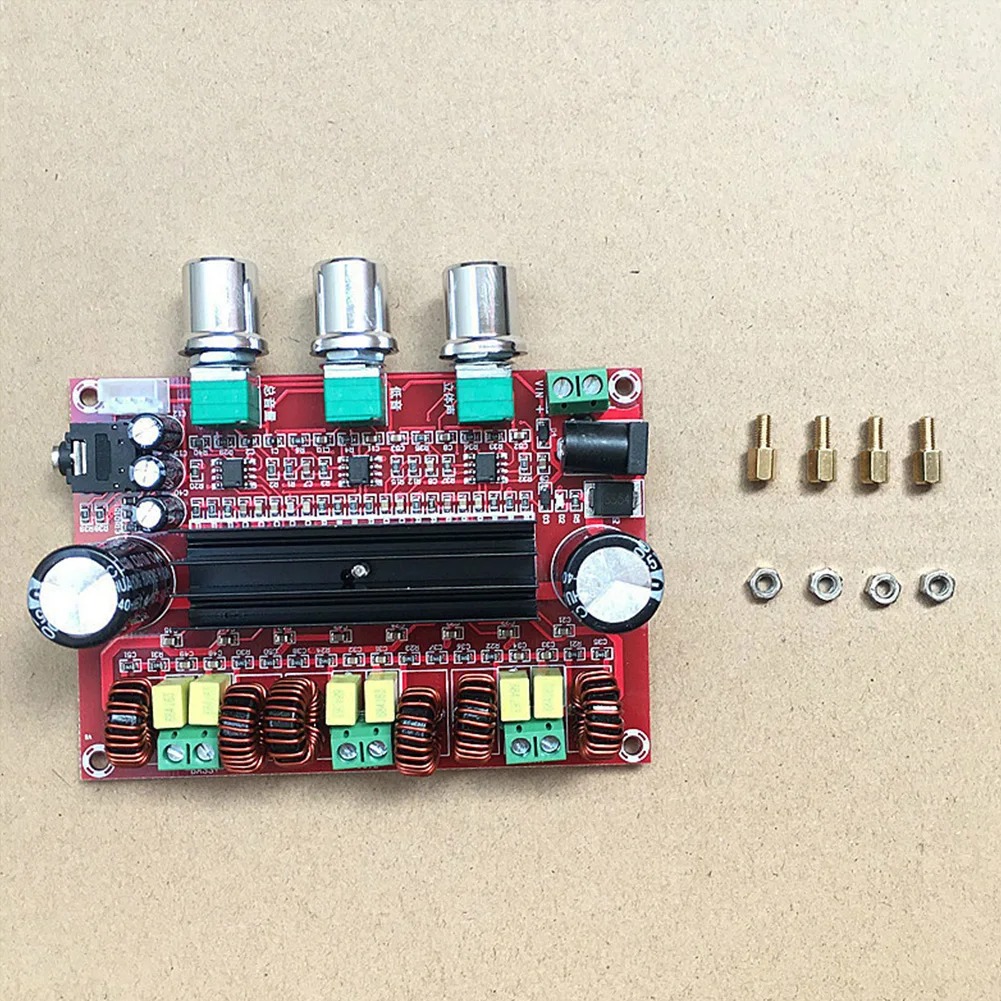

Package Included:
1 PC x Digital Amplifier Board
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
Характеристики
- Бренд
- Woopower
- Максимальная мощность на канал
- 100 Вт
- Каналы
- 3 (2.1)
