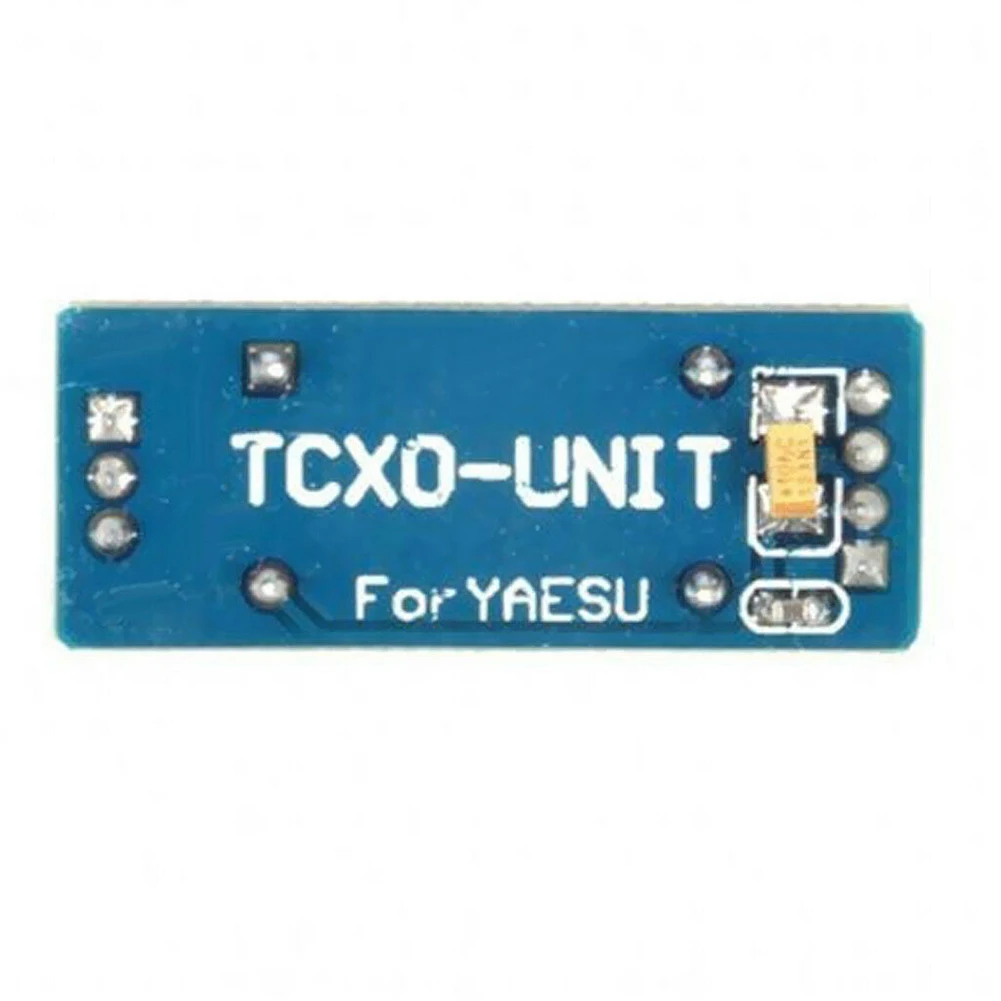

TCXO-9 теплая дополнительная Замена прочные практичные компенсированные компоненты Кристалл модуль питания части управления для Yaesu

Features:
For Yaesu FT-817/857/897 and other models applicable.
Frequency of 22.625MHz, after replacement of the original machine crystals can improve machine stability.
This crystal accuracy can be achieved 0.5PPM, consistent with the genuine TCXO-9 module parameters.
Specifications:
Name: warm complementary crystal module
Model: TCXO-9
Material: electronic components
Color: as shown
Size: about 30x13x9mm
Installation:
Turn the machine off, open the machine cover.
To find the location of the installation compensated crystal of ordinary crystals.
And then you can plug in accordance with the pins are aligned.
Installed after the boot does not require any settings to get started.
Package included:
1 x module
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
