Пусковой модуль для инструмента, запчасти для автомобильного генератора, долговечный инструмент для управления электроникой, сменный инструмент для управления, профессиональные аксессуары, панель для DSE7320

Description:
1. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the backklight LCD screen, illuminated LEDs.
2. Engine for controlling EFI or non-electrospray and gas, providing advanced engine detection and protection.
3. Not only beautiful, excellent performance, and powerful; panels and menus are easy to understand and easy to operate.
4. Remote monitoring or network monitoring is more convenient and more timely.
5. Improved features include a real-time clock to enhance event logging and monitoring; Ethernet communication reduces monitoring costs.
Specifications:
Color: black
Size(approx.): 240 X 181.1 X 41.7mm
Panel opening size(approx.): 220 X 160mm
Speed sensor frequency range: 1Hz-10KHz
Speed sensor voltage range: minimum +/-0.5V (during start-up) -70V
Fuel relay output A: 15Amp DC output
Start the appliance output B : 15Amp DC output
Relay outputs C and D: 8Amp 250V passive output
Custom output E, F, G and H: 2Amp DC output
Package Included:

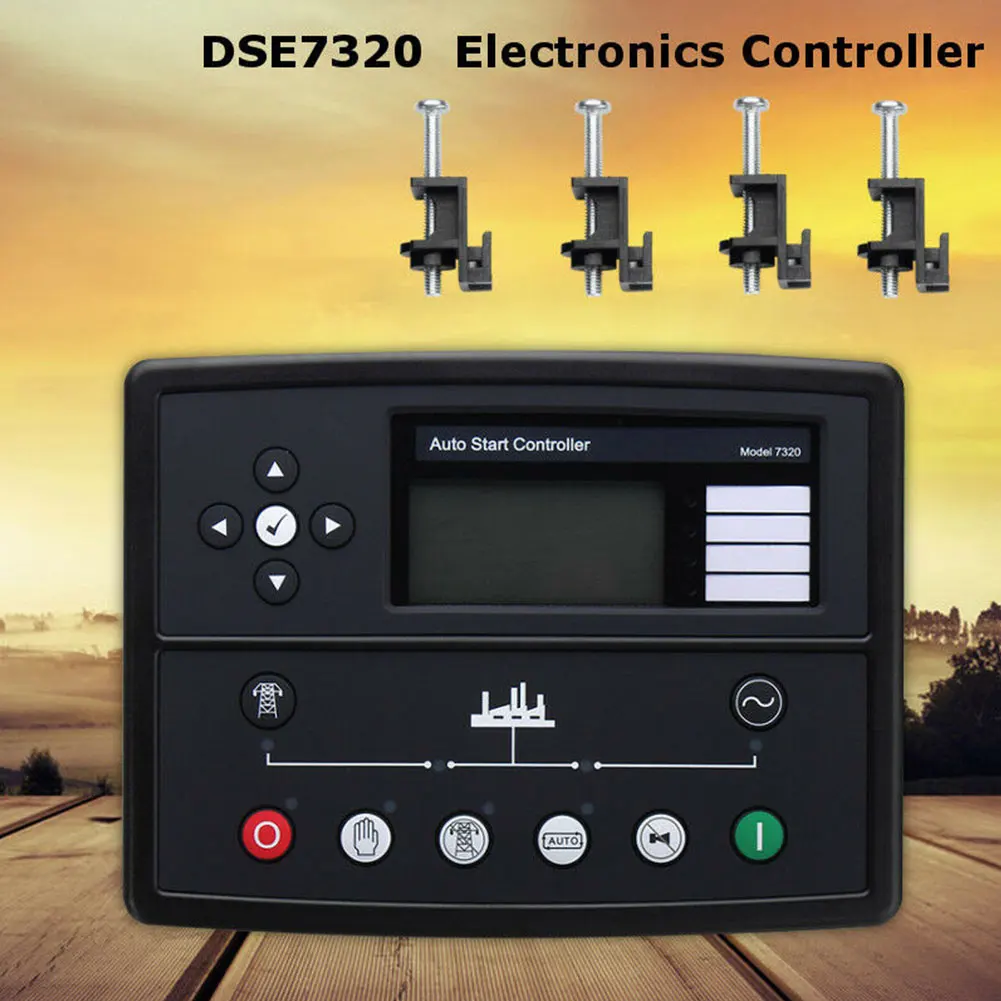

1PC * Electronics Controller for DSE7320
1PC * User Manual
4Pcs * Small Component
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2cm differences due to manual measurement.
