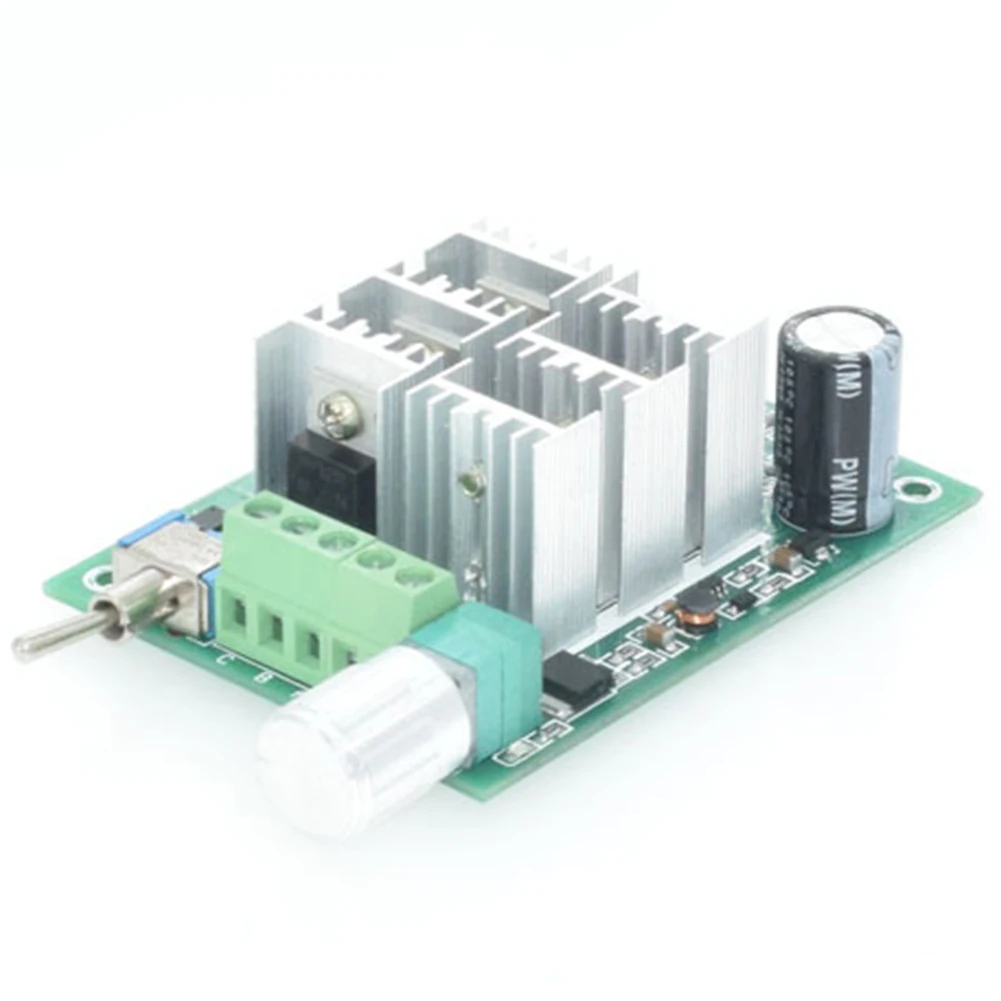

Приводные части 15A вперед трехфазный бесщеточный контроллер модуляции двигателя обратный двунаправленный яростный вентилятор прочный Бессенсорный

Features:
Applicable motor: DC three-phase brushless motor.
The input voltage must be positive or negative. Do not input 220V household electricity.
The input voltage should be equal to the rated voltage of the motor (within 5-36V).
Motor line ABC is in no order.
Specifications:
Color: as shown
Input voltage: DC5-36V (specific voltage is equal to the rated voltage of the motor)
Output current: within 15A
Forward rotation reverse: Bidirectional
Protection current: 15A
Input current: It is larger than the motor work.
Speed control mode: Potentiometer (270 degree linear)
Speed range: 0—100%
Supported motor: Brushless motor
Wiring type: Barrier terminal block
Knob type: 100K (with switch)
Speed regulation mode : 270 degrees of linear potentiometers (with switch)
Size: (Approx) 80x60x28mm
Package Included:
1 PC x Motor Speed Controller
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
