OSCA02L Portable 100M 2-Channel Digital Virtual Oscilloscope with Logic Analyzer

Features:
Support more than 20 automatic measurement functions and FFT spectrum analysis. Provide GPIO interface and software interface protocol for customer's secondary development. Configuration of USB 2.0 interface, can be directly from the host power, without additional power supply. It realizes PC large screen display and PC desktop oscilloscope similar interface, which is easy to operate. Support multiple serial protocol decoding, voice support Chinese and English switching. With 4-channel logic analyzer, the software supports Windows XP/7/8.1/10 (32 bit and 64 bit). Small size, easy to carry, suitable for notebook computers, can be used for production line maintenance and adjustment, easy to use on business.
Specification:
Condition: 100% Brand New
Material: Plastic

Model:	OSCA02L
Detail:	OSC2002 + 4 channels Logic analyzer. Support for Windows XP/7/ /8.1/10 (32 bit and 64 bit).
			Input channels:	2
Maximum sampling rate (S/s):	100M
Bandwidth (-3 dB):	35MHz
FFT:	Yes
Data logger:	Yes
I/O extension:	No
Serial bus decoding:	Yes
Hardware trigger:	Yes
Connector type:	2 channels with BNC sockets, 20 mm spacing.
Vertical resolution:	8 Bit.
Maximum sampling rate (S/s):	100M
Bandwidth ( -3 dB):	35MHz
Input coupling:	AC/DC.
Input characteristics:	1MΩ || 25pF.
PC OS requirements:	for Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit).
Overvoltage protection:	±60.0v (x1), ±600.0v (x10). (DC + AC peak)
Triggering type:	Rising/falling edge according to trigger level.
Triggering mode:	None, auto, normal, single.
pre-trigger capture:	50% of capture size.
Automatic measurements:	Maximum, minimum, average, RMS, frequency, period, positive pulse width, negative pulse width, duty cycle, rise time, peak-to-peak value.
Deep measurement:	With this function, the waveform jump points are automatically numbered and marked, and the time difference between the two adjacent numbers is automatically displayed.
			Samples Interpolation:	Linear or sin(x)/x.
FFT:	1024-16K points.
FFT window function:	Rectangle, Hanning, Hamming, Blackman.
Math:	A+B, A-B, AxB, X-Y.
Acquisition Modes:	Normal mode / High Resolution mode / Peak detect mode.
Waveform recording and playback:	File format :	*.oscxxx.
	Record depth:	50 - 450 frames.
	File size:	6 MB - 20GB.
Comparison reference	Support waveform image import and real-time waveform comparison reference. It can import waveform pictures, set gray level and transparency, move up and down, and zoom in and out horizontally and longitudinally.
			Data logger Sampling Interval:	1 second to 1 hour.
Data logger Record Duration:	1 minute - 72 hours.
Temperature range:	Operating: 0 °C to 40 °C (20 °C to 30 °C for stated accuracy). Storage: -20 °C to +60 °C.
Reference Output:	1K Hz, 1.5 V square wave output with 50% duty cycle.

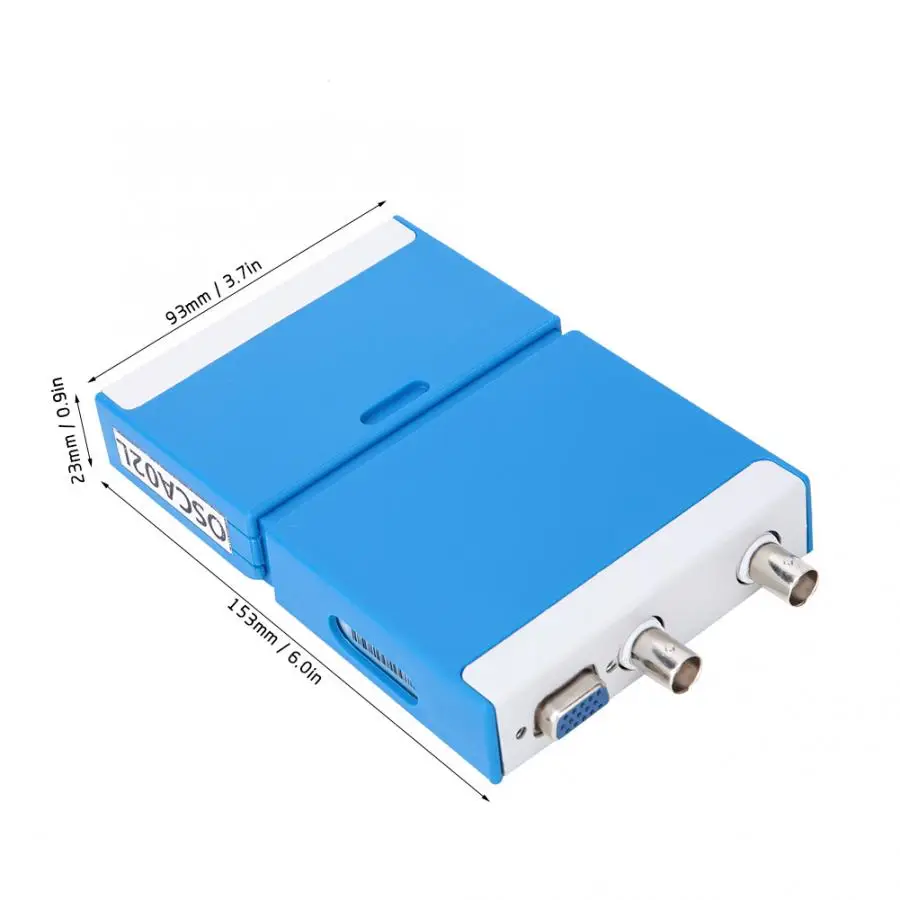

Size:	153x93x23mm / 6.0x3.7x0.9in
Languages (full support):	English, Chinese (simplified).
Compliance:	CE, FCC.
Input sensitivity (10 vertical):	50 mV/div to 2 V/div.

Application:
1. General and precise testing.
2. Embedded in teaching equipment or industrial test system.
3. Detection of power ripple and noise.
4. Multi-sensor system and serial bus decoding.
5. Analog data acquisition and secondary development and application of digital IO control project.
6. Voltage/current data recording and analysis of solar energy system and lighting system.
7. Fault Diagnosis Tool for Field Maintenance Engineer.
8. DIY enthusiasts and foundational tools created by Traders.

Package List:
1 x Oscilloscope
1 x 4-Channel Logic Analyzer TTL Module
2 x Probes
1 x Probe Adjustment Kit
1 x USB Computer Cable
