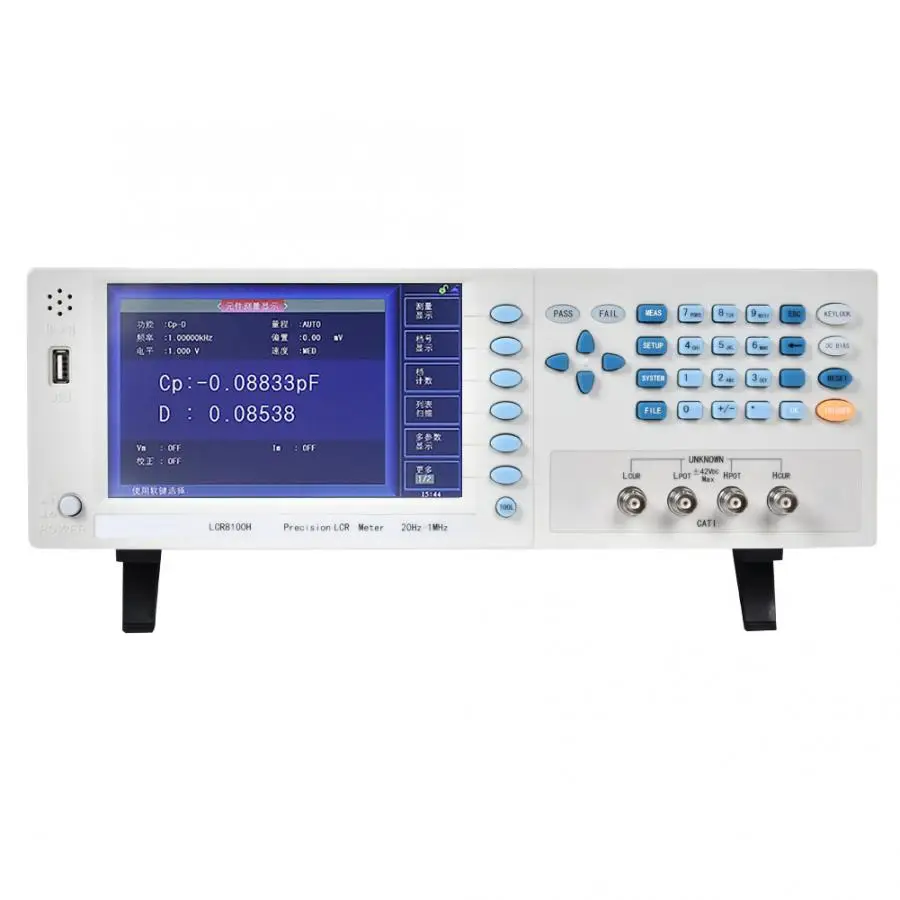

Benchtop Digital Bridge Meter Capacitance Resistance Impedance Inductance Measure Tester

Features:
The new 32-bit core processor has excellent performance and accurate measurement data. It is equipped with 7in TFT display, 20Hz-5MHz test frequency, frequency point can be continuously adjusted. 0.05% of the basic measurement accuracy, fast testing speed, sensitive response, easy to use. Configuration of graphics scanning analysis function, support frequency/level/offset scanning, comprehensive insight into the characteristics of the measured parts. Automatic level control ALC function with test voltage or current. Output impedance of four different signal sources: 30Ω, 50Ω, 100Ω, 10/CC. 10-grade sorting and counting function, -5V - +5V (-100mA - +100mA) internal DC bias. The 10-point list scanning function can upgrade and update the software version through the U disk. U-disk copy screen function makes it easier to save data. It can support FAT16, FAT32 file system, RS232C, USB HOST, USB DEVICE, HANDLER, GPIB and headphone interface.
Specification:
Condition: 100% Brand New
Material: Metal, Plastics
Voltage&Plug: 220V EU Plug, 110V US Plug, 220V UK Plug (Optional)

Measuring specifications	LCR8100H
Measurement Frequency	20Hz-1MHz
Basic measurement accuracy	0.05%
Equivalent circuit	Series, parallel
Mathematical functions	Absolute value deviation, percentage deviation
Range way	Automatic, hold, manual selection
Trigger mode	Automatic, manual, external, bus
Measure speed (≥1KHz)	Fast: 75 times per second, medium: 12 times per second. Slow speed: 3 times per second
Average time	1-255
Delay time	0-60s, Step by 1ms
Calibrating	Open/short circuit/load
Test configuration	Four/Five Ends
Value List	10 point list scanning function
Display mode	Direct reading , %, V/I(Measured voltage/current monitoring)
Display	7in 800x480 color TFT LCD Display
Testing Signal
Output Impedance	30Ω, 100Ω, 10/100, 10/CC optional
DC offset source (interior)	0V 1.5V 2V Accuracy: 1%
Display Range
IZI,R,X	0.01mΩ-99.9999MΩ
DCR	0.001mΩ-99.9999MΩ
IYI,G,B	0.00001μS-99.9999S
C	0.00001μF-9.9999F
L	0.00001μH-9999.99H
DCR	0.00001-9.9999
Q	0.00001-9999.9
DEG	-179.999-179.999
RAD	-3.14159-3.14159
Other
Comparator function	Class 10: (Nine qualified, one unqualified) and AUX
Multiparameter	Four parameters can be arbitrarily selected for simultaneous measurement and display
Curve scanning function	Under multiple testing conditions, the graph scanning analysis of the tested part is carried out
Storage	Internal storage, USB extended storage
Interface	Standard equipped with RS232C, HANDLER,USB HOST,USB DEVICE headphone interface, Pedal interface

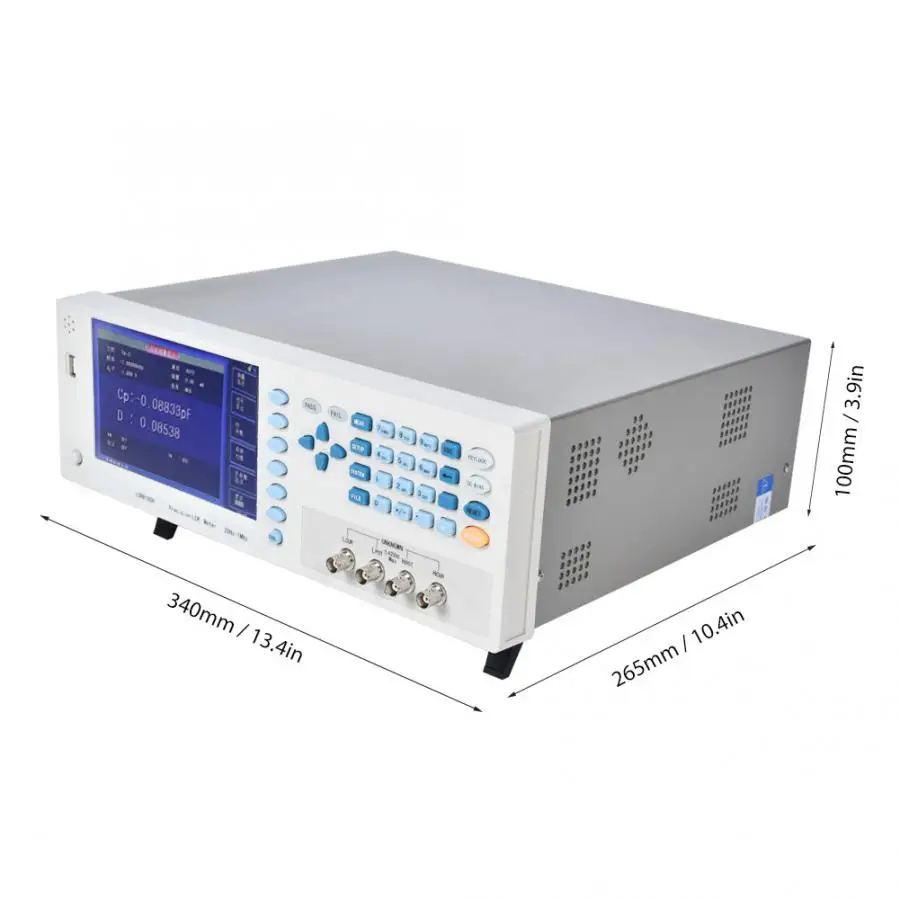

Size	340x265x100mm / 13.4x10.4x3.9in

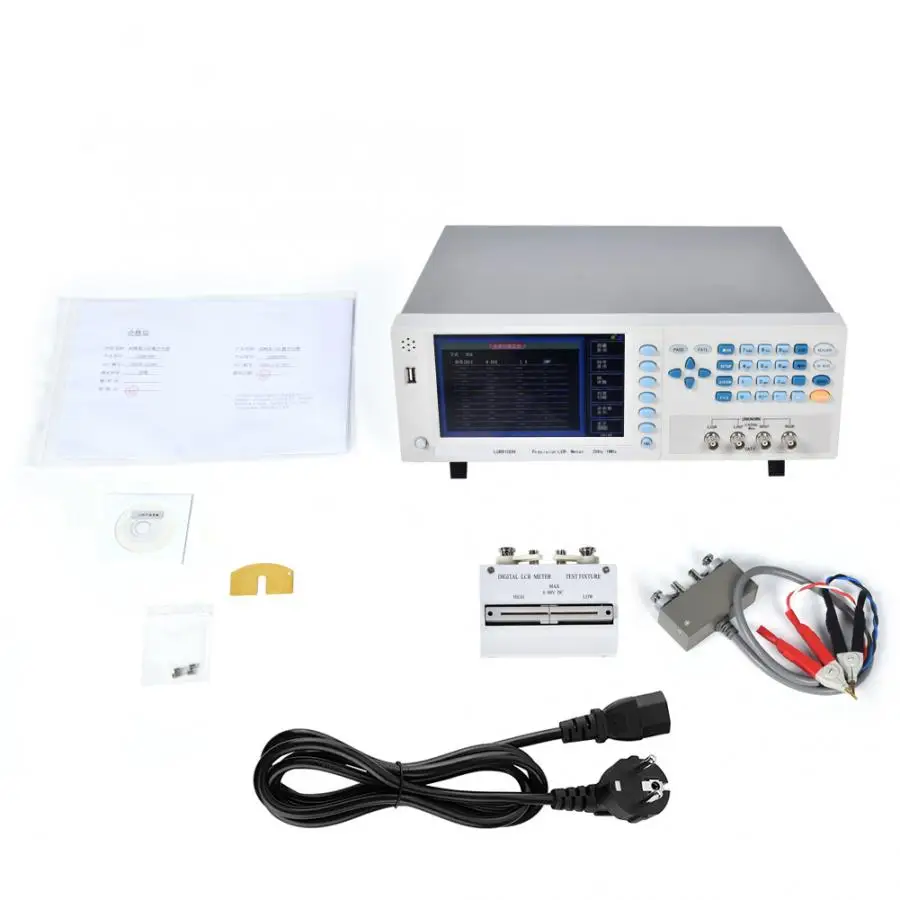

Package List:
1 x Digital Bridge Meter
1 x CD
1 x Power Line
2 x 2A Fuse
1 x Gold-Plated Short Circuit Plate
1 x Four End Kelvin Test Cable

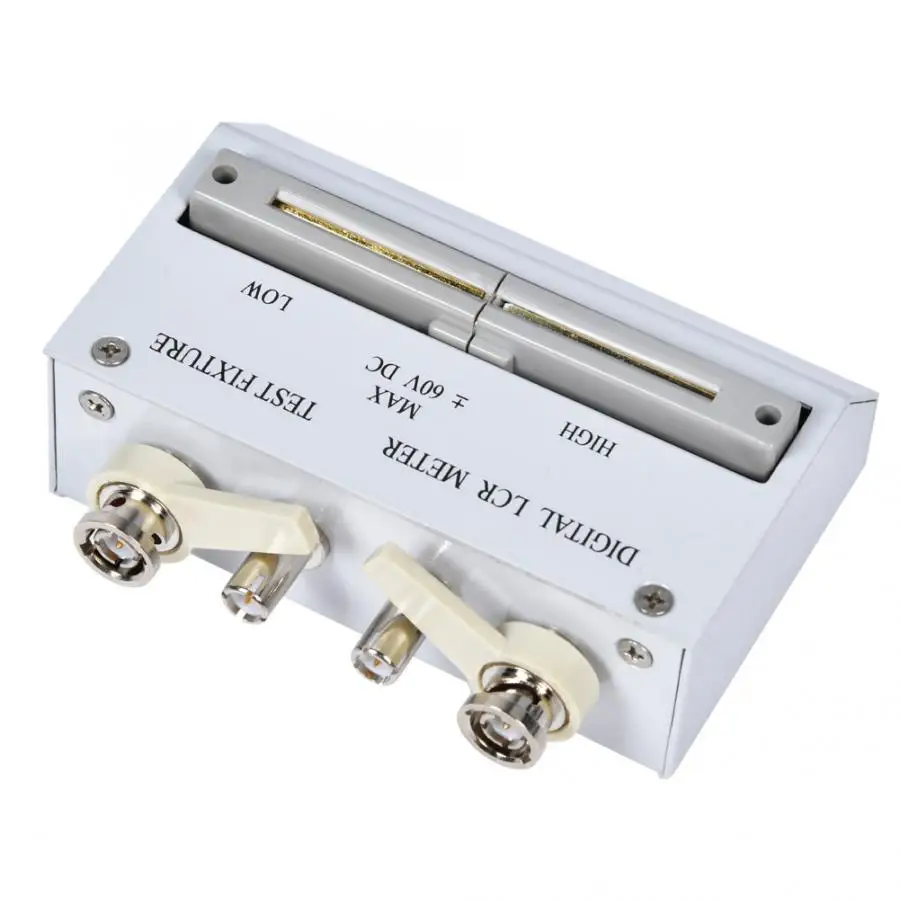

1 x Four End Test Box
1 x Instruction Manual
