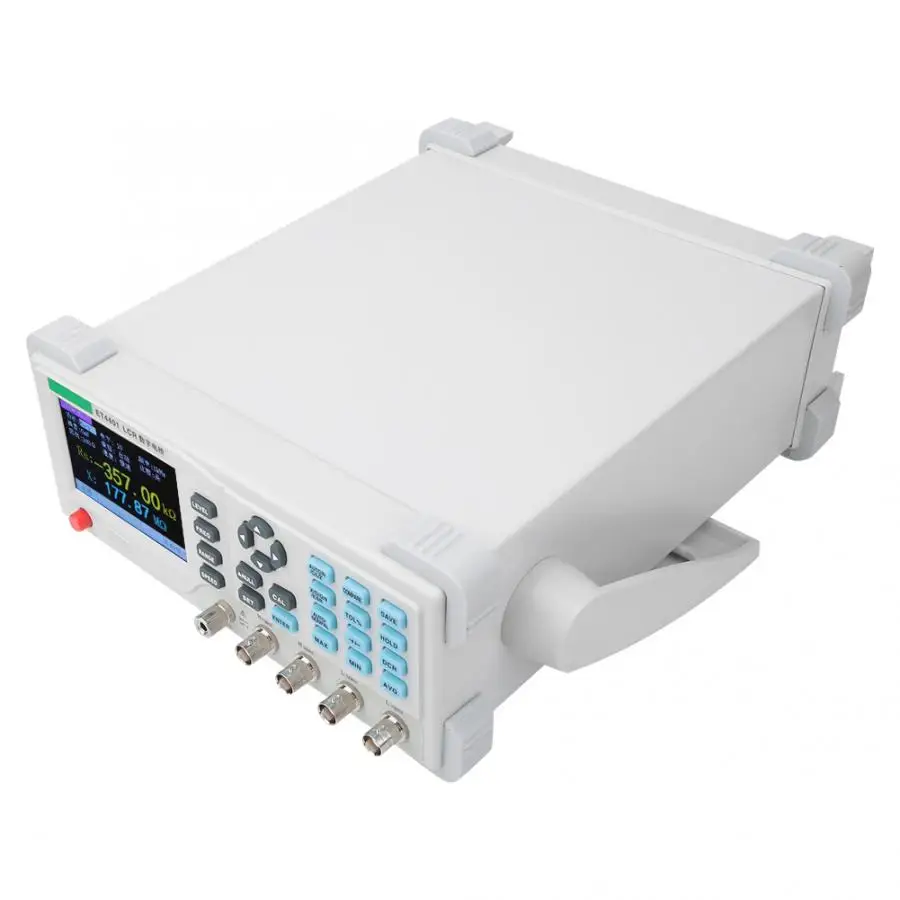

Desktop Digital Bridge Meter Capacitor Resistance Impedance Inductance Meter Tester

Features:
ET44 series desktop bridge uses 3.5in TFT display screen, 5-bit half display, clear interface display, easy to use. You can use USB and RS232 for remote control, and you can use a handle to classify components. It can not only adjust the output frequency and test level, but also record the value of components in the measurement process. The internal bias voltage outputs 1mV-1500mV, with a basic accuracy of 0.2%. The measurement frequency is as high as 100 kHz and the test level is 100-2000 mV. It supports the measurement of current, resistance and electrolytic capacitance. It supports automatic identification of component measurement, is equipped with open circuit and short circuit correction, and provides a variety of test interfaces. Supports SCPI communication protocol, provides system settings, can configure language, buzzer, screen brightness and so on according to user needs. Configuration of manual and automatic range, with data recording function, can display the maximum, minimum and average value.
Specification:
Condition: 100% Brand New
Item Type: Bridge Meter
Material: Metal, Plastic
Plug: EU Plug 220V, US Plug 110V (Optional)

Model	ET4401
Digits	Main parameter: 5 digits; secondary parameter: 5 digits
Measurement Parameter	Main parameter: L/C/R/Z; secondary parameter: X/D/Q/ESR
Measurement Range(L)	0.01μH - 9999H
Measurement Range(C)	0.01pF - 99999μF
Measurement Range(R)	0.0001Ω - 99.99MΩ
Basic Accuracy	0.2%
Test Frequency (Hz)	100-10kHz 10 point
Measurement Display Speed	2 times/second (slow), 4 times/second (medium speed), 8 times/sec (fast)
				Internal Bias	0-1500mV adjustable, 1mV stepping
Test Level	100mV, 300mV, 600mV, 1000mV, 1500mV, 2000mV
Correction Function	Open circuit correction, short circuit correction
Screening function	The screening limit can be set from -50% to + 50% with fixed points of 1%, 5%, 10% and 20%
				Selection of comparator	Five gear sorting, third gear qualified, one gear failed, one ancillary gear
Communication Interface	Standard configuration: USB, RS232 (or 485)
	Handle interface; Optional: GPIB, USB Host
Others	Support DCR, electrolytic capacitor measurement mode
	adjustable backlight brightness, optional in English and Chinese

Package List:
1 x Digital Bridge Meter
1 x Set of Accessories
1 x Instruction Manual
