Описание

Легкая Применение Автоматическая мульти Функция осциллограф электронные интеллигентая(ый) с указанием Тесты зажим стабильная Собранный цифровой карман

Description:
Vertical displacement adjustable with indication.
Digital display with waveform parameters: frequency, period, pulse width, duty cycle, maximum value, minimum value, average value, effective value.
With automatic, regular and single trigger mode, convenient to instantaneous waveforms.
Can be triggered by rising or falling edges.
The waveform display can be frozen at any time.
Specifications:

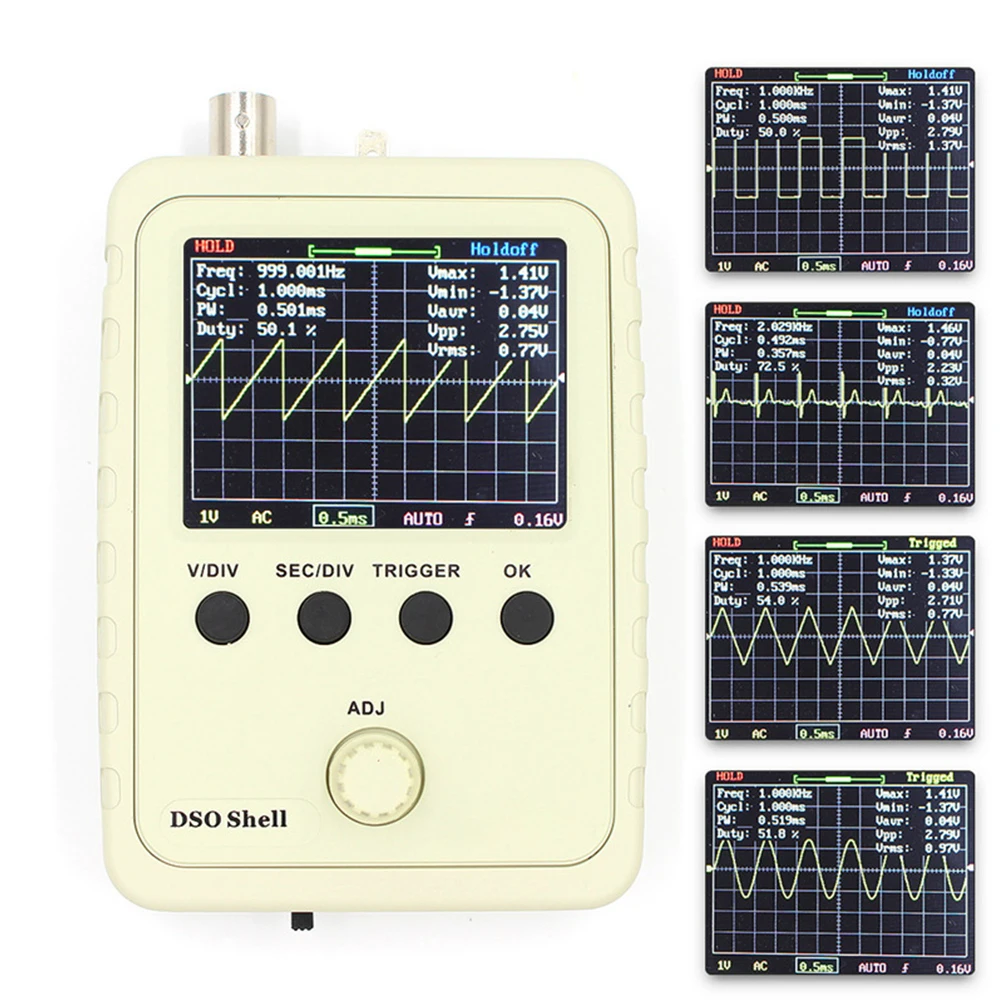

Product name: Oscilloscope
Color: Beige
Material: Plastic
Highest real-time sampling rate: 1Msps
Accuracy: 12Bit
Sample buffer depth: 1024 Bytes
Analog bandwidth: 0 - 200KHz
Vertical sensitivity: 5mV/Div – 20V/Div (inward by 1-2-5)
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling mode: DC/A C/GND
Horizontal time base range: 10μs/Div – 50s/Div
Size: About 14* 9.5* 3 cm
Package Included:
1 x Oscilloscope
1 x Test clip
Note:
Transition: 1cm=10mm=0.39inch.
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 0.5-2 cm differences due to manual measurement.
