Контроллер скорости один чип защита от перегрузки по току профессиональный электрический бесколлекторный стабильный без Холла DC5V-15V Мотор привод

Features:

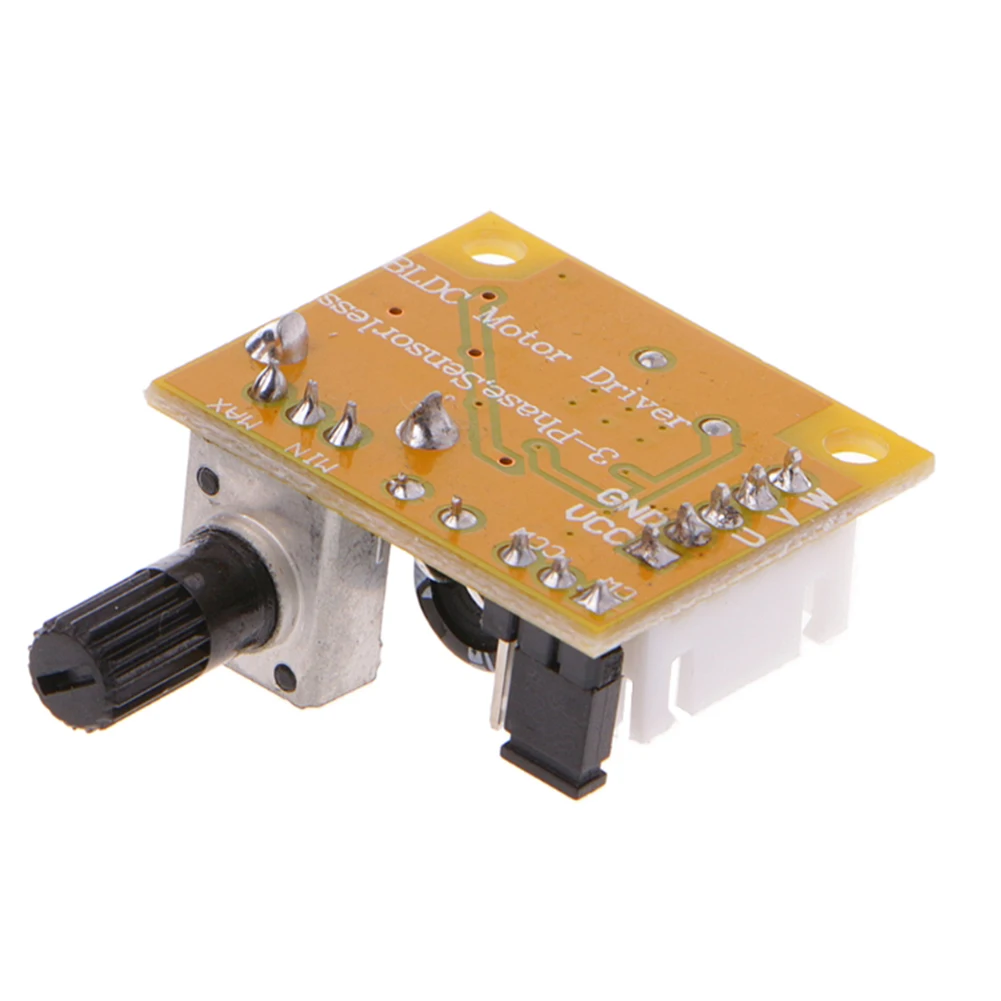

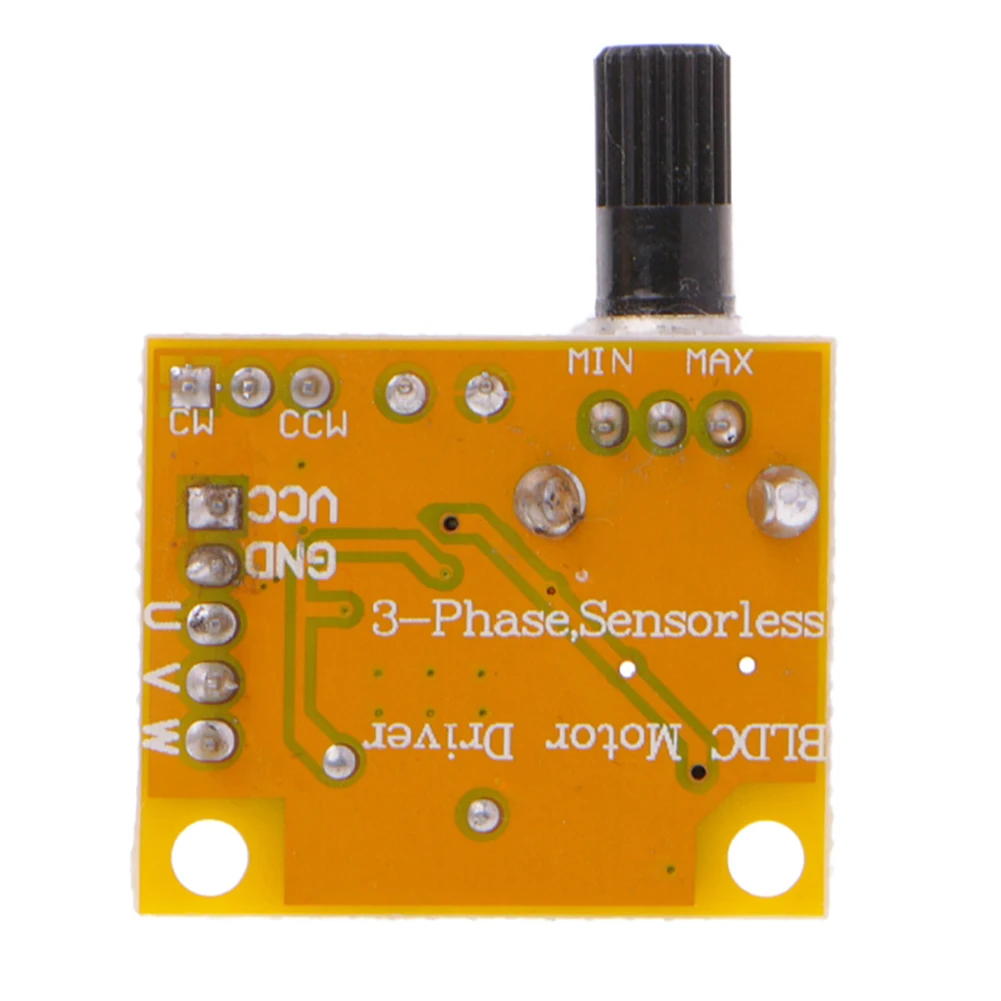

This mini brushless DC motor controller adopts high single chip integration
The drive motor without hall sensor, power supply for DC voltage regulator can not connect to alternating current
This mini three-phase brushless speed controller, the input power Supply has A reverse connect protection, reverse would not burn
Internal integrated over-current protection circuit chip set limit current detecting circuit, the normal work in 1.5 A continuous current
Specifications:
Working voltage: DC5V-15V
Operating current: 1.5A
Control power: 15W (Z large)
Quiescent current: 0.005A (standby state)
PWM duty cycle: 1%-.

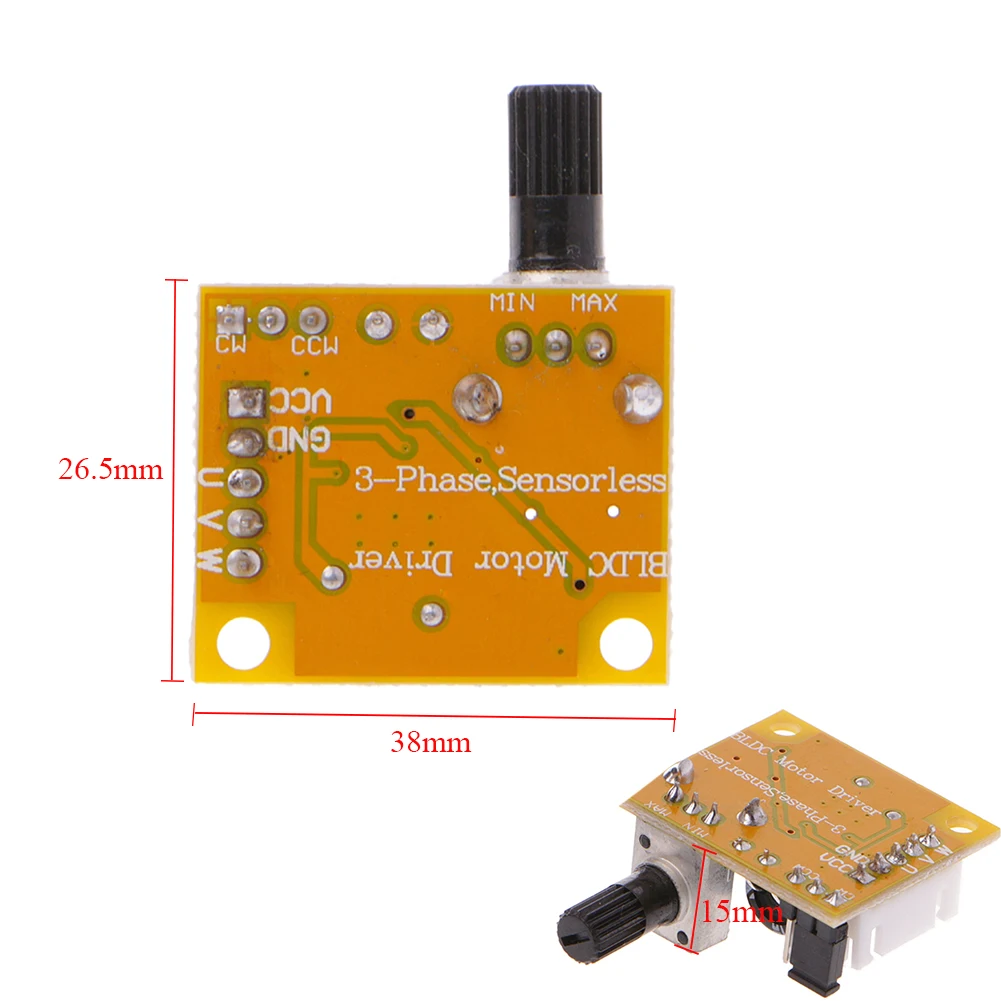

PCB size: 38MMx width 26.5MM (without handle) total height 15MM
Quantity: 1pc
Package Includes:
1 x DC Motor Drive Board
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
