Описание

DSO188 стабильный анализатор обслуживания электронный цифровой дисплей осциллограф набор портативный пропускной способности ручной 5 м Частота дискретизации мини

Features:

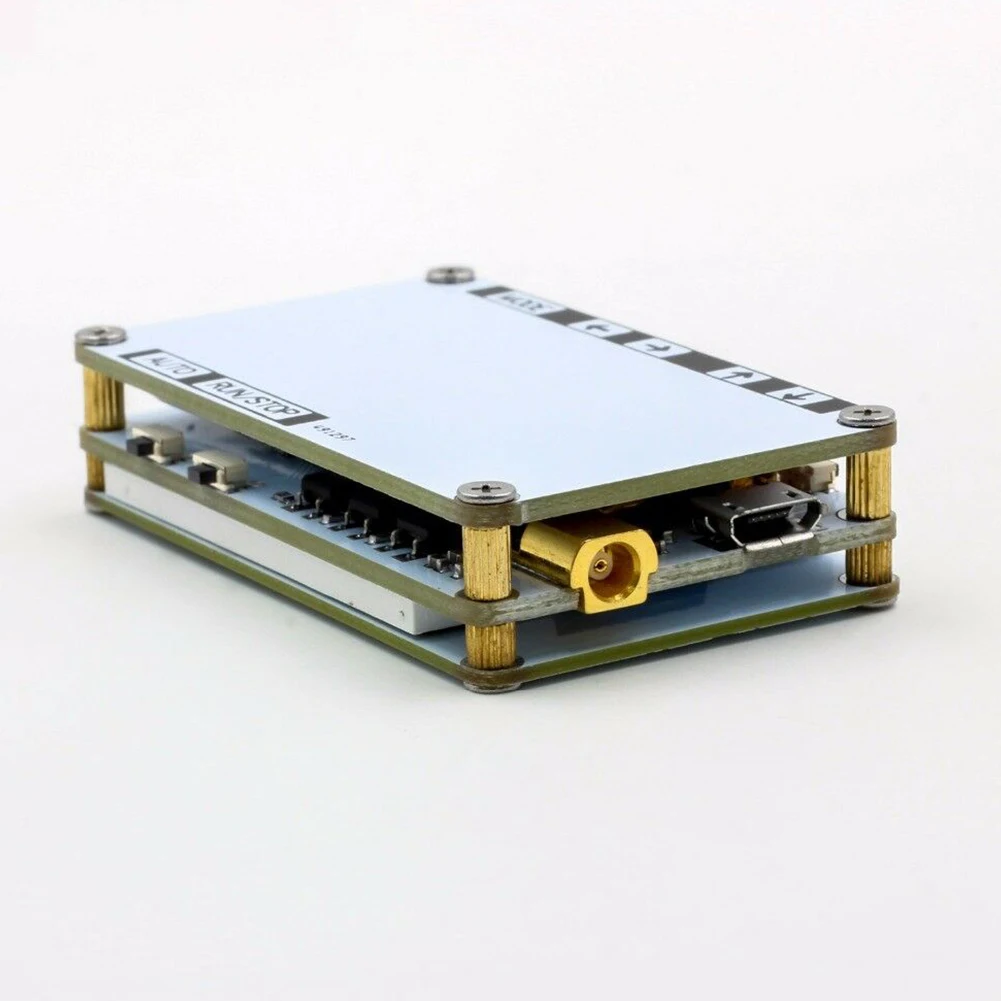

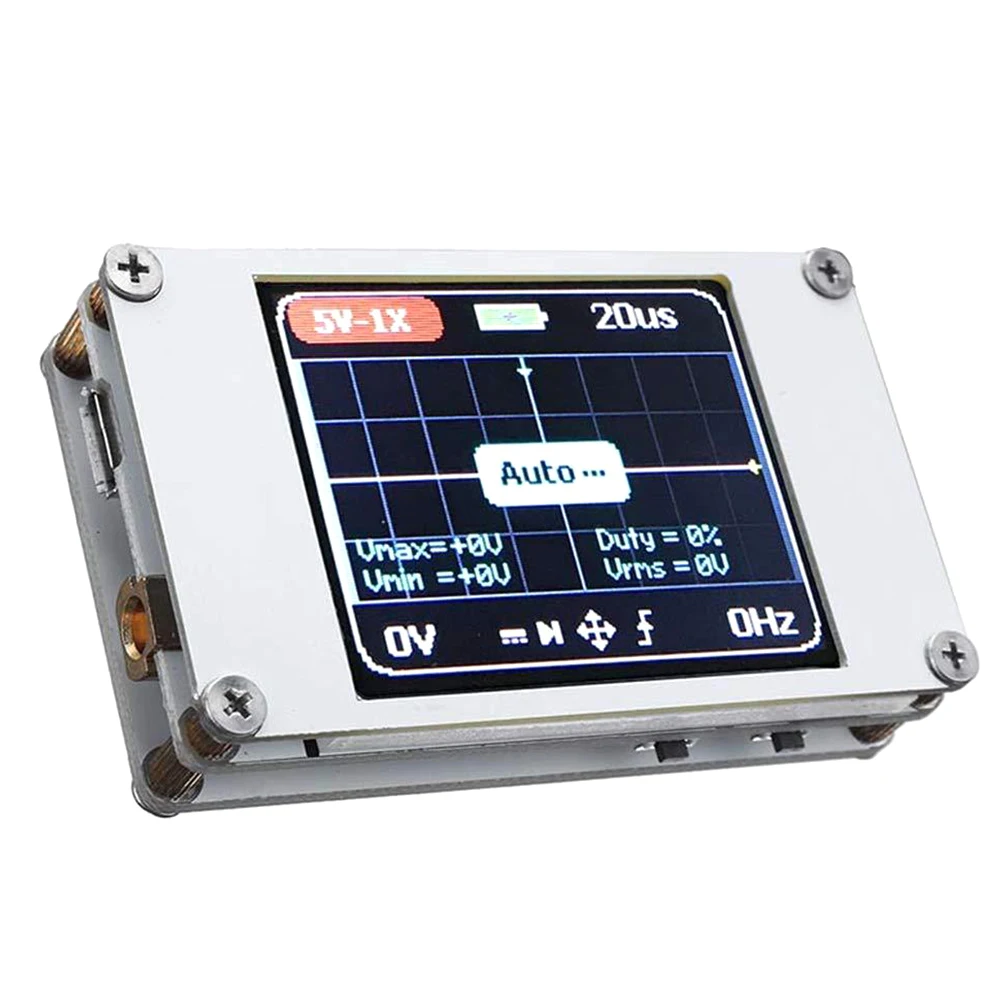

This is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements.
Small size, light weight, easy to carry, can be operated by hand.
A variety of trigger modes, support positive and negative edge trigger, logic trigger, pulse width trigger.
Powerful waveform processing capability, can automatically measure voltage, frequency, pulse width and other parameters.
It is great for production test, research, design and education.
Specifications:
Product name: mini oscilloscope
Color: white
Bandwidth: 1MHz
Max sample rate: 5MSa/s
Screen size: 1.8inch
Storage: 40KB
Size: about 57 x 34 x 11mm
Number of channels: 1
Input impedance: 1MΩ
Battery capacity: built in 300mAh batteries
Rise time: less than or equal to 100ns
Vertical sensitivity: 50mv/div-200V/div
Horizontal time base range: 100mS/div ~ 2uS/div
Trigger mode: rising/falling edge trigger
Maximum input voltage: 1X：40 V, 10X：600 V
Power supply: 5V/1A, 5V/2A, 5V/4A
Package included:
1pc x mini oscilloscope
1pc x MCX adapters
1pc x usb cable
1pc x instruction manual
