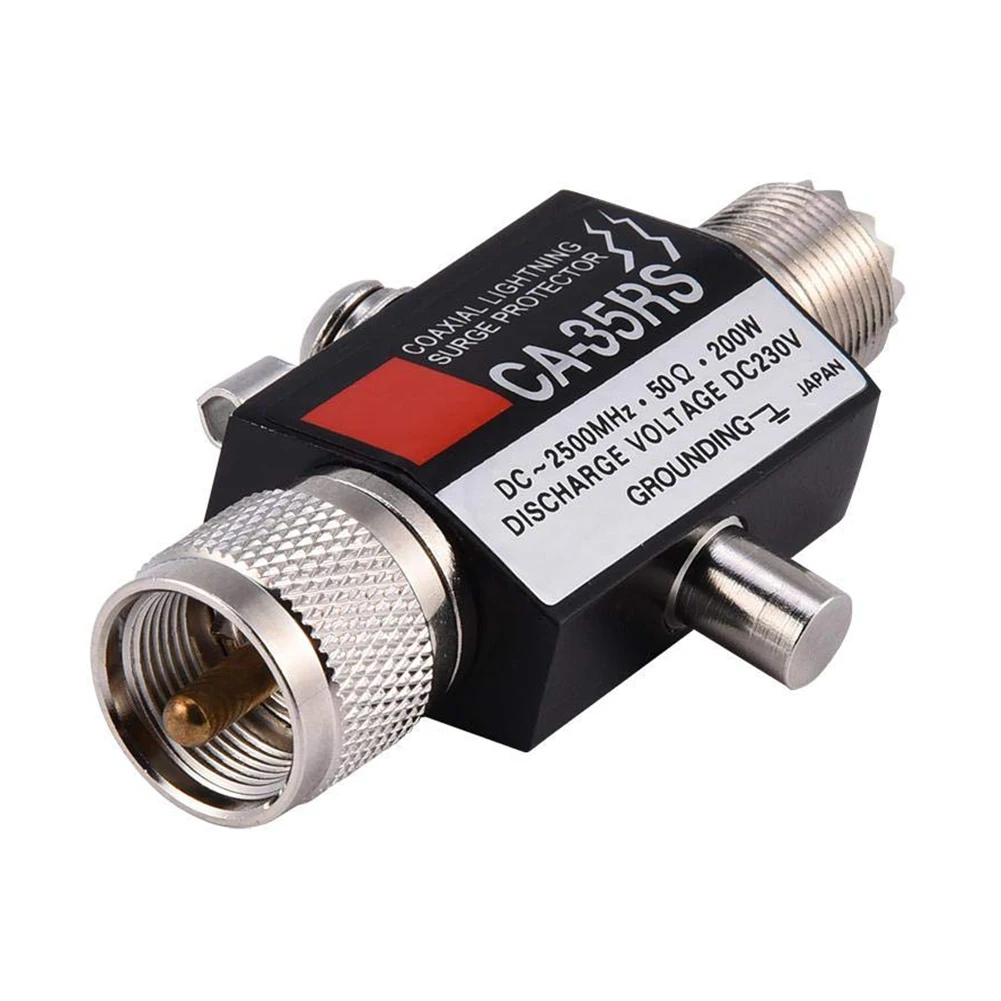

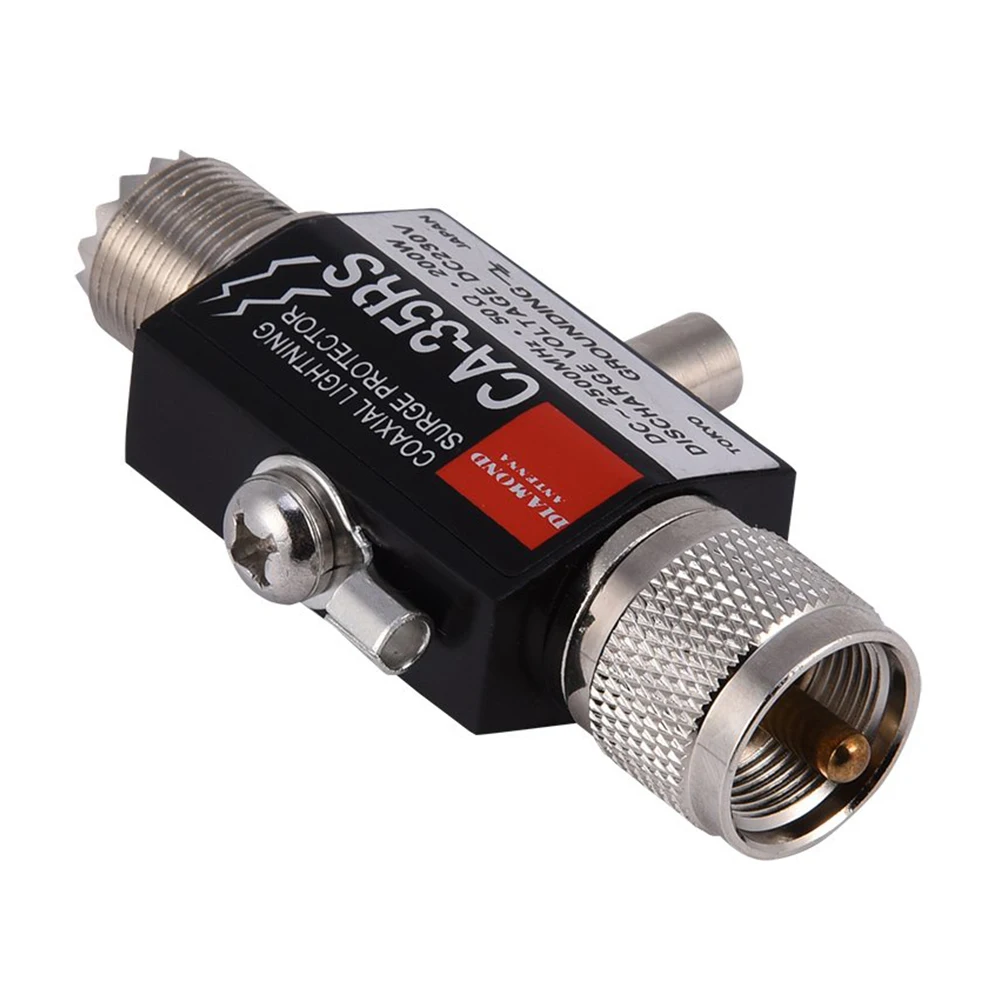

CA 35RS стабилизатор напряжения UHF коаксиальный разъем Низкая потеря антенна разрядник полная защита Открытый Высокая безопасность двухстороннее радио

Description:
1. An integrated surge suppressor factor for gas charging that discharges and grounds the surge when the surge exceeds a level.
2. Performs surge relief and restore actions as needed. Simple and easy installation.
3. The coaxial construction ensures excellent high frequency characteristics, wide bandwidth and low losses.
4. Principle of 1/4 wavelength short circuit for a good protection effect.
Specifications:
Model: CA-35RS
Color: as shown
Material: iron
Interface: SL16-JK
Frequency: DC-3GHZ
Impedance: 50 ohms
Size(approx.): 77 X 41 X 21mm
Insertion loss: less than 0.2dB
Max. power rating: 400W
Package included:
1PC * Antenna Arrester
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2cm differences due to manual measurement.
