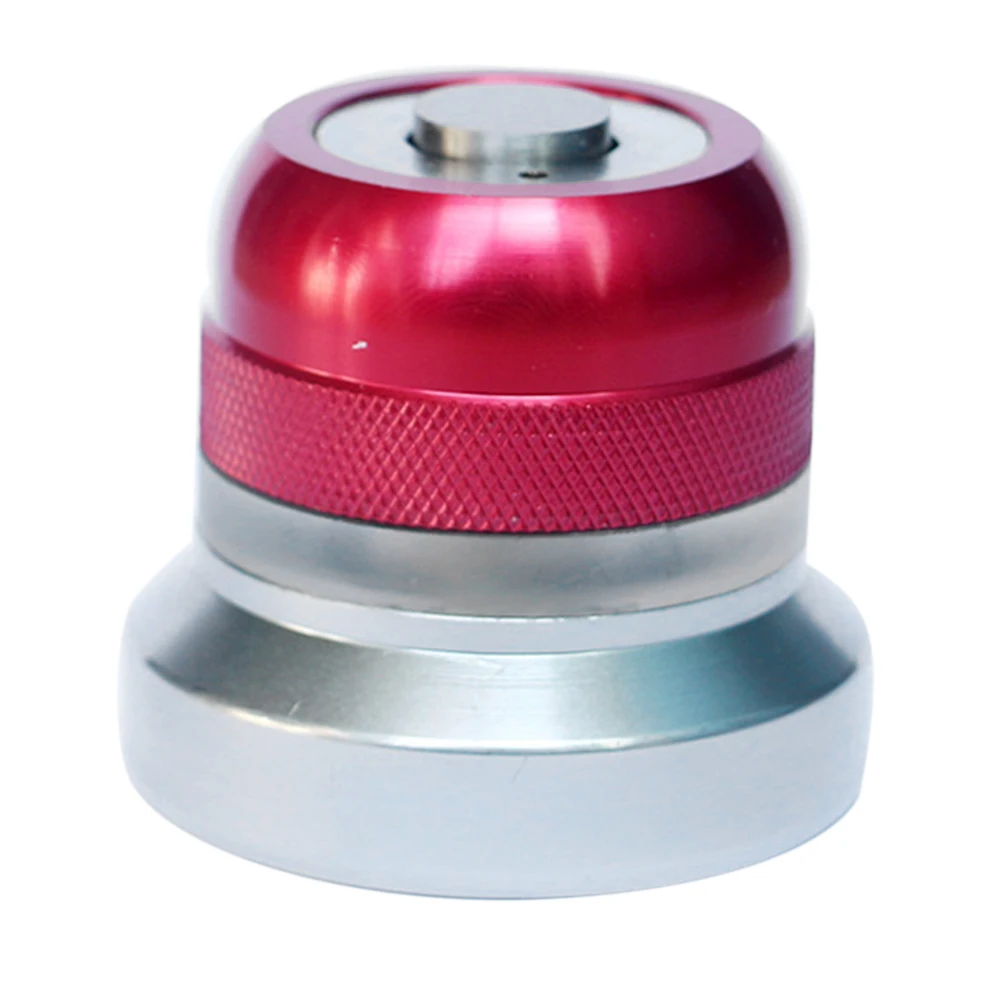

Features:
High sensitive: The step design has a large measuring surface, sensitive measurement and accurate tool setting.
Magnetic: The base is magnetically designed for side detection, and it is also anti-skid and easy to fix.
Indicator light: The red light will be illuminated when touched.
Size: Height 50mm,Height can be micro adjusted and audited by gaga block.
Application: Can be used vertically or horizontally.
Specifications:
Material: high-carbon steel

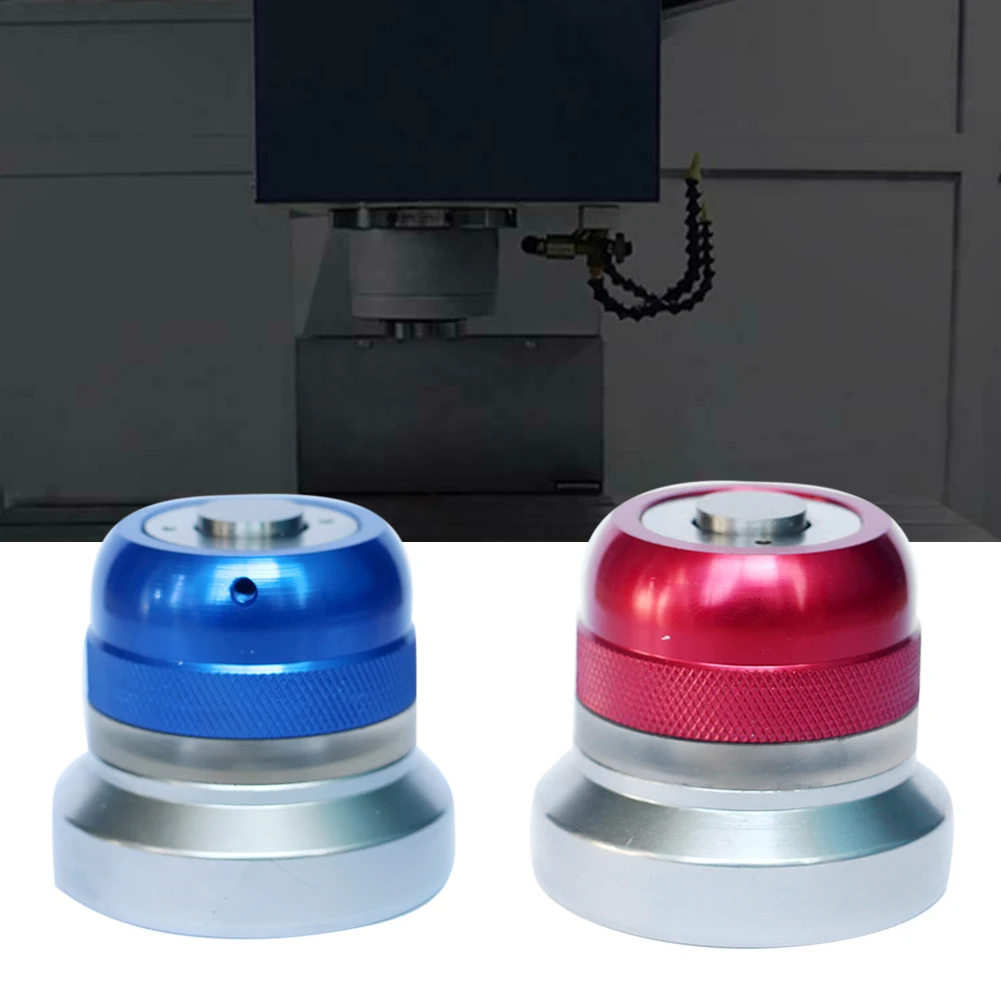

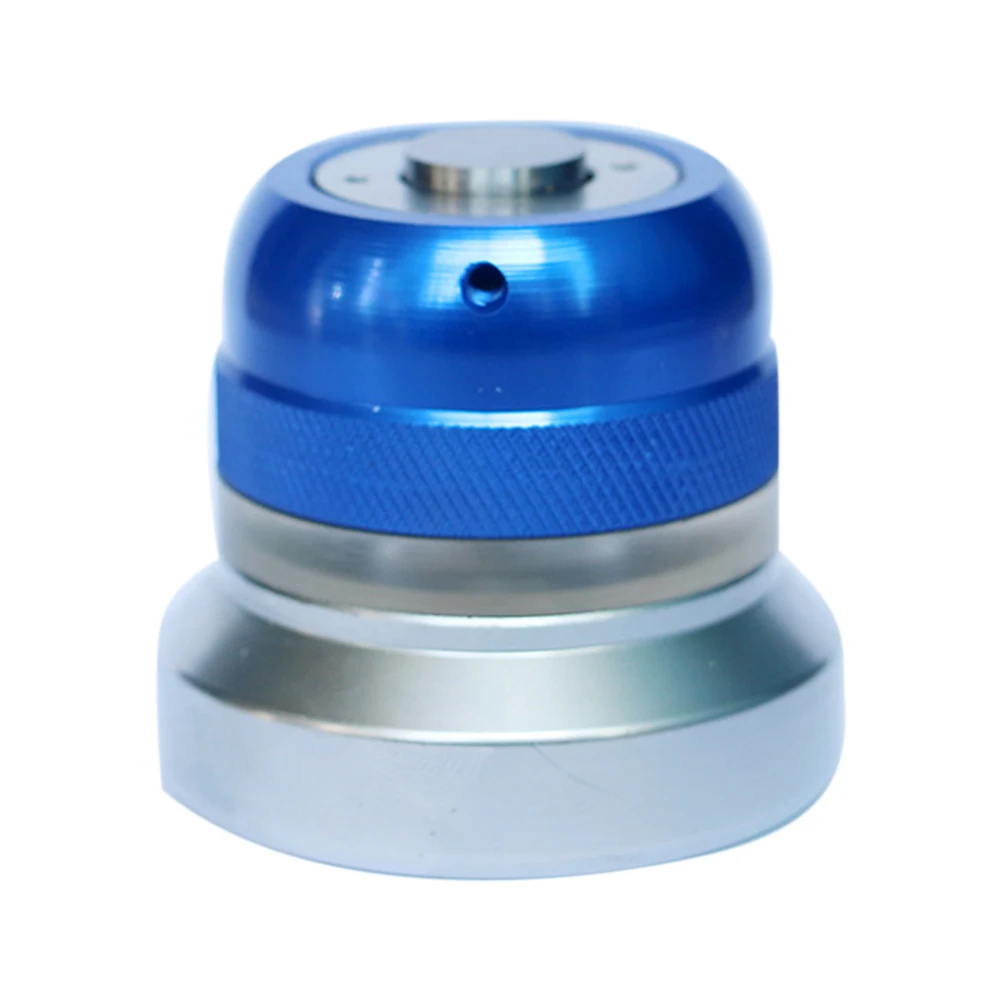

Color: blue, pink
Size:about 50mm
Types: photoelectric
Scope of application:
The workpiece shall be of metal and electrically conductive.
Because the Z axis photoelectric setter needs to form a closed
loop with the machine, the instrument tool configuration will light up.
Instructions for use:
1. There is a fine adjustment mechanism below the side of the probe, and the adjustment of the deviation is performed by parallel block gauge comparison.
2. When the tool is fast to the light, please turn back slightly until the light goes out, then slowly advance until the light is on. In order to ensure the accuracy
3. When detecting the side, touch the side of the probe with the highest point of the blade.
4. Set the height 50 (+0.005/mm).
Package included:
1pc x Z axis setter
