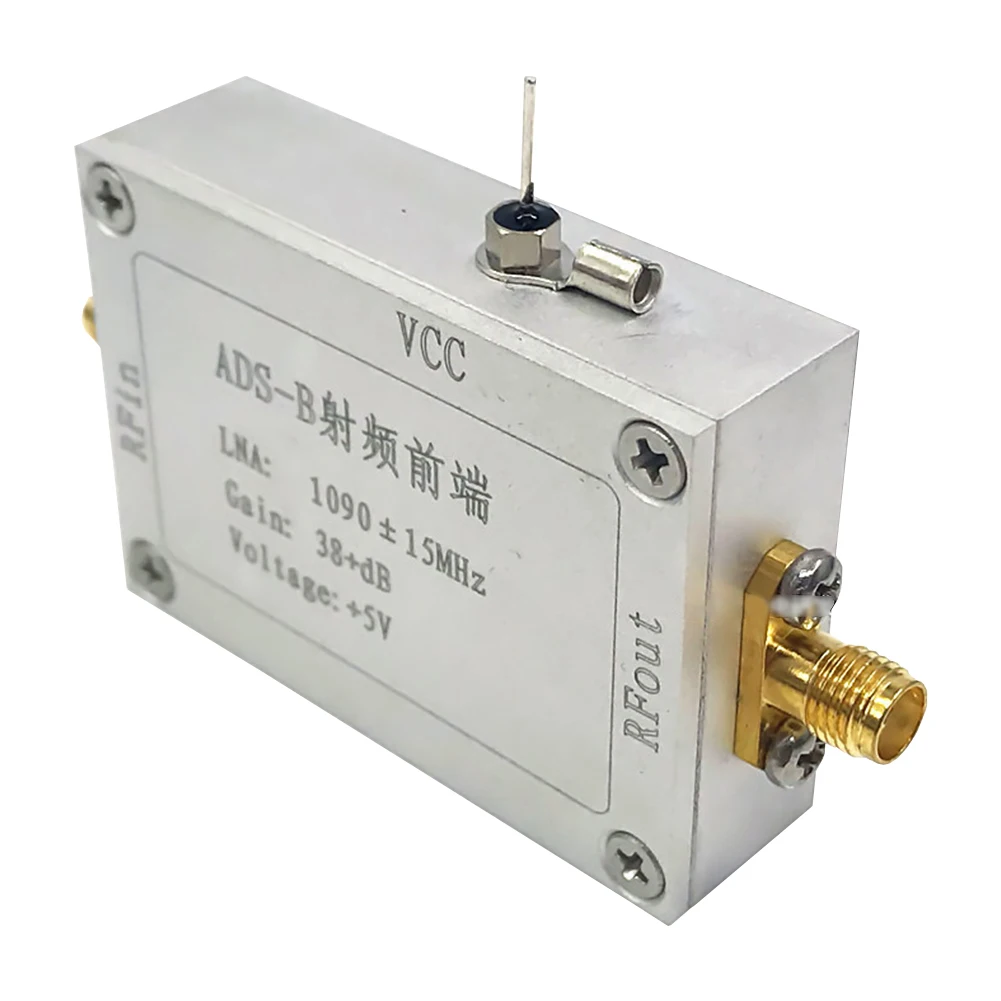

ADS B частоты фронтальные модули низкий уровень шума стабильная 1090 МГц мощность сигнала радио РЧ усилитель Vedio Аксессуары Инструмент Электрический

Description:
1. RF low noise amplifier, with standard female connectors, suitable for connecting most devices.
2. Double filter structure ensures sufficient suppression of out-of-band signals and improve SNR.
3. The RF front end adopts a two-stage amplifier and a special two-stage filter.
4. The front panel has high enhance , and large dynamic range.
Specifications:
Model: ADS-B
Color: as shown
Feature: low noise
Operating voltage: 3.3-5.0V DC
Operating frequency: 1090MHz
Amplification enhance: 38dB
Out-of-band inhibition: -75dB +- 50mhz; - 55dB +- 1 GHZ
Size(approx.): 51.5 X 36 X 15mm
Package Included:
1PC * RF Amplifier
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2cm differences due to manual measurement.
