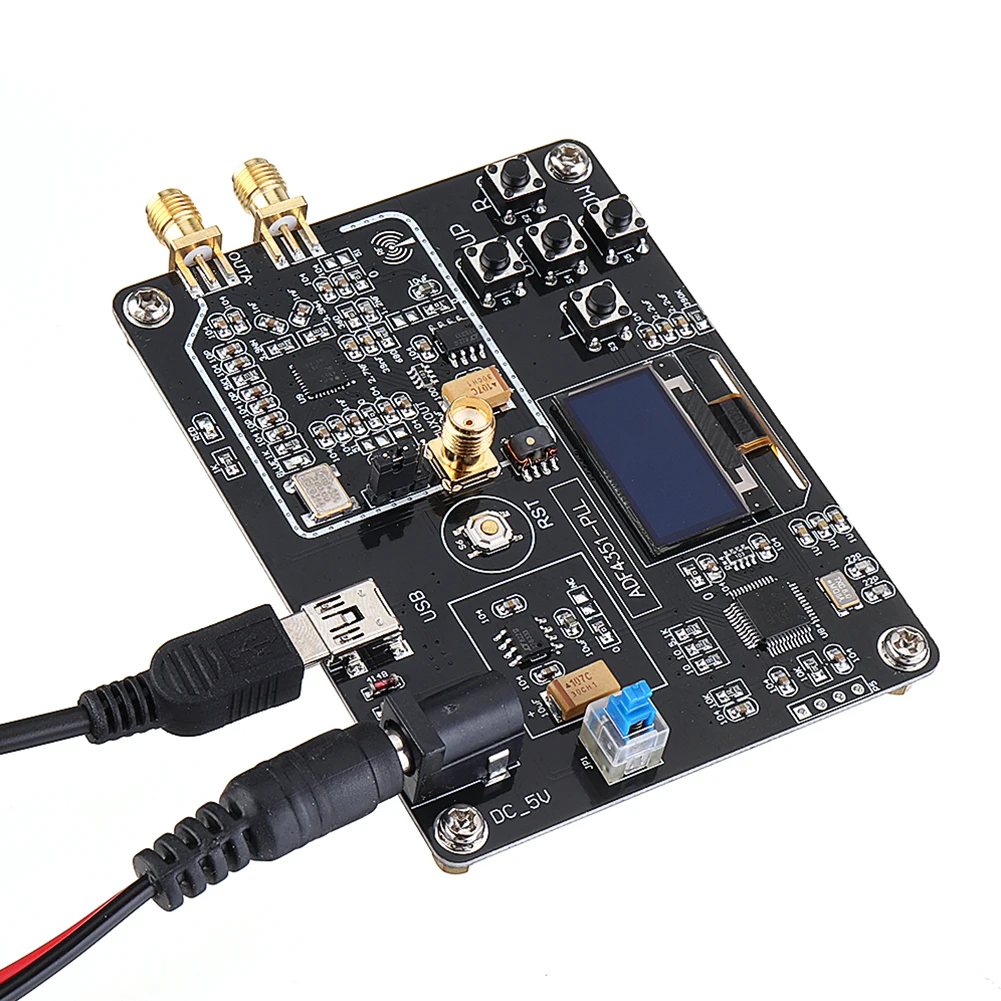

ADF4351 широкий модуль генератора сигналов напряжения RF двойной выход макетная плата Точная частота синтезатор 35 м-4,4 г USB порт

Features:
DISPLAY:It has an OLED display to make the results clearly visible
COMPATIBLE:For the ADF4351 ADF4350 integrated phase-locked loop, we introduced this host computer's USB and serial port module
WIDE VOITAGE:It is a phase-locked loop module with integrated key operation, wide range voltage supply, and good human-computer interaction interface.
MULTIFUNCTION:The module can realize the frequency output of 35MHz-4.4GHz, basic functions such as point frequency, frequency sweep, frequency hopping.
PACKAGE: Our package come with a signal generator module, a USB-mini line and a BNC male head to SMA male high-frequency cable

Specification
Color: black
Material: plastic
Size(L x W): about 88mm x 67mm
Power: 5V-15V (DC 5.1MM); 5V (USB)

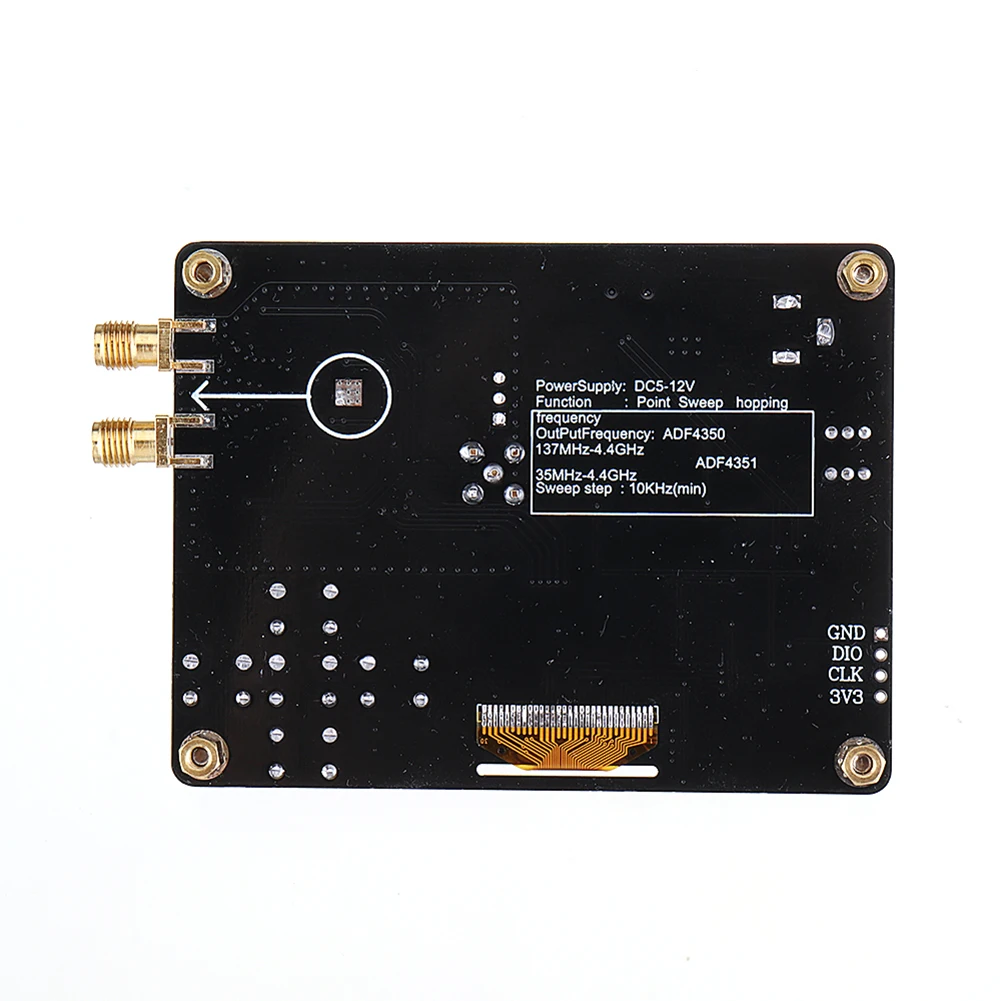

Bandwidth: ADF4351: 35MHz-4.4GHz; ADF4350: 137MHz-4.4GHz
Module step: 100KHz (minimum)
Frequency error: ± 1KHz
Output: OUTA OUTB two ways
Module phase noise: better than -100dBc 10KHz (the noise varies with the frequency band phase)
Module output power: 7dBm (maximum)

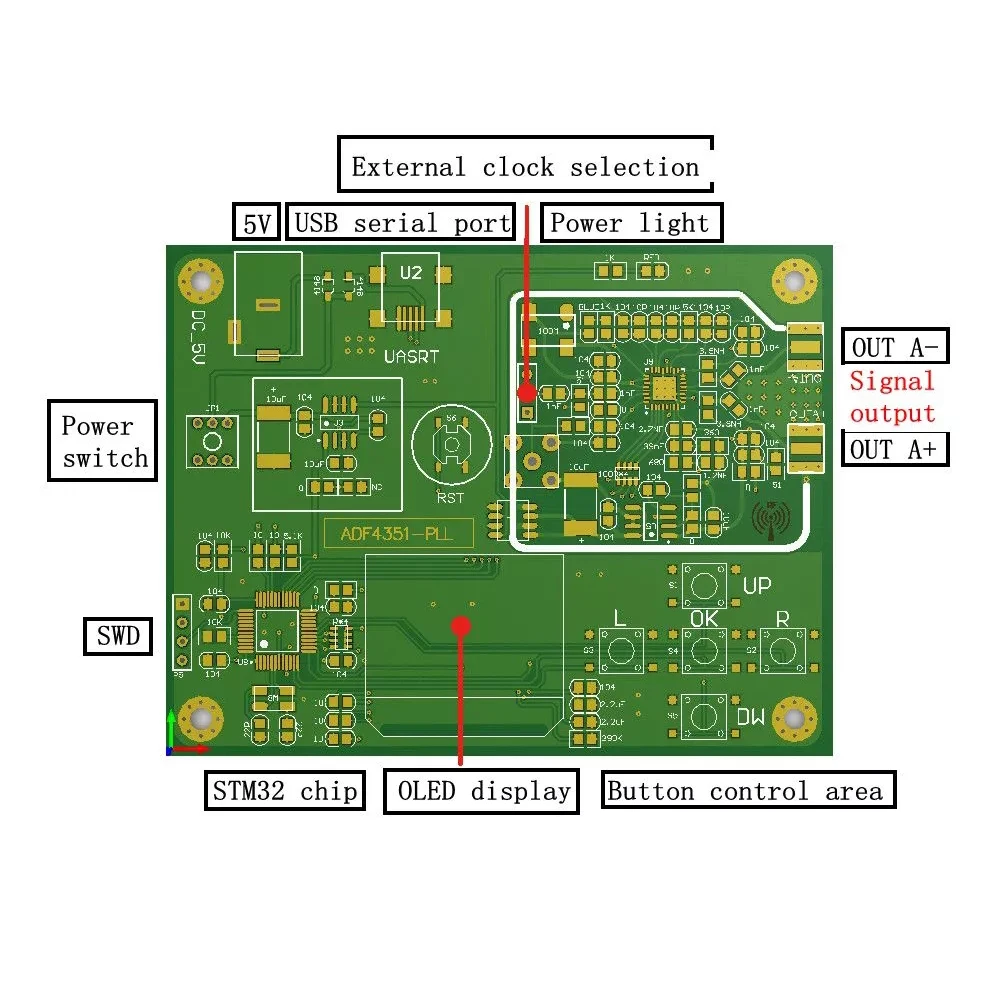

Module interface: STM32 USB external communication port can be configured as USB or analog serial port (default)
Module program download mode: SW module, three-wire system (GND SWCLK SWDIO)
Package include:
1pc x signal generator module
1pc x USB-mini line
1pc x BNC male head to SMA male high-frequency cable
