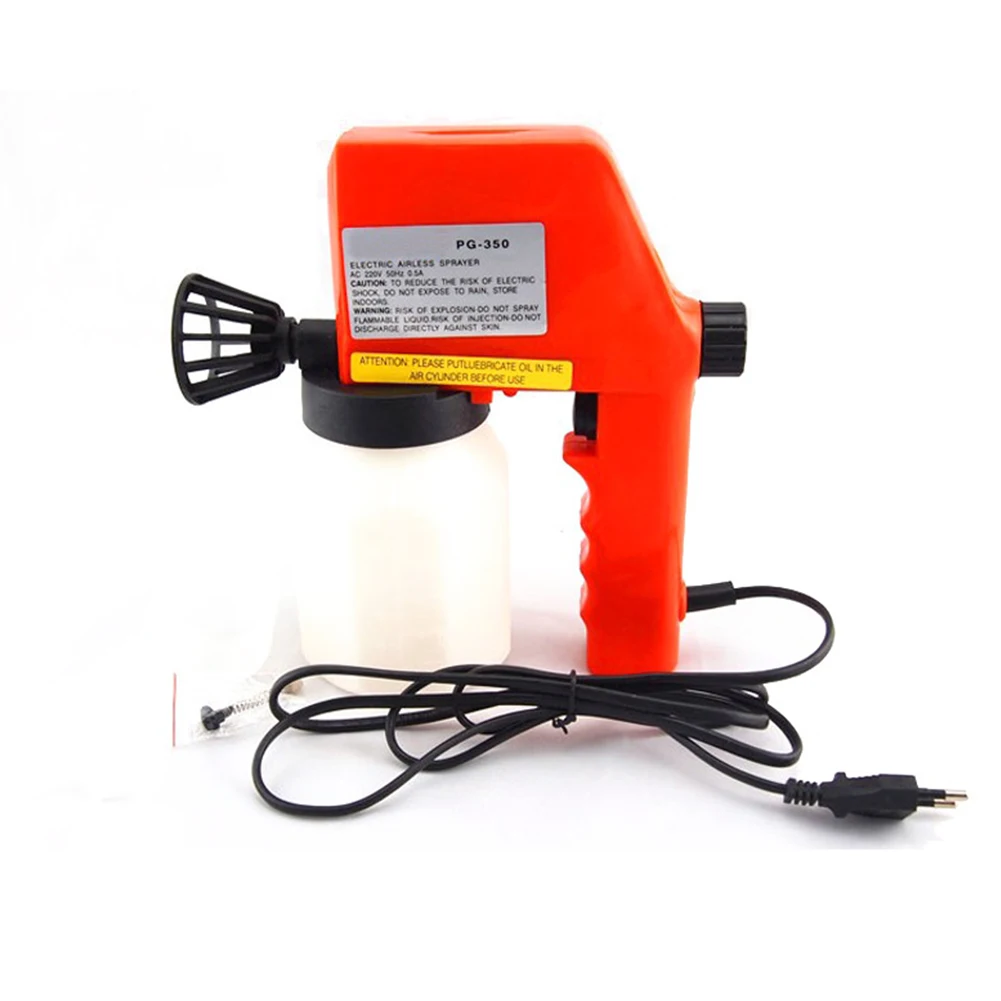

600 мл 220 в 0,8 мм электрическая распылительная насадка распылитель краски блендер распылитель краски автозапчасти распределительный щит

Specification

Model: 501

Voltage: 220V

Frequency: 50Hz

Jet flow: 0.26 l/min

Operating current: 0.6A

Power: 75W

Capacity: 600ML

Plug: EU Plug

Usage:Suitable for auto parts, switchboard, control panel, heavy machinery, home appliances parts, steel furniture, woodworking products, gold plating protection, knitted fabrics, cloth dyeing and printing industry, packing, screen printing, mold, hardware, advertising, IC version Of the industry's most perfect decontamination tool, and so on.

Package includes: 1 * Electric spray gun

Operation:

1. First, make the liquid bottle filled with liquid, then connected to the 220 V power supply and turn on the switch.

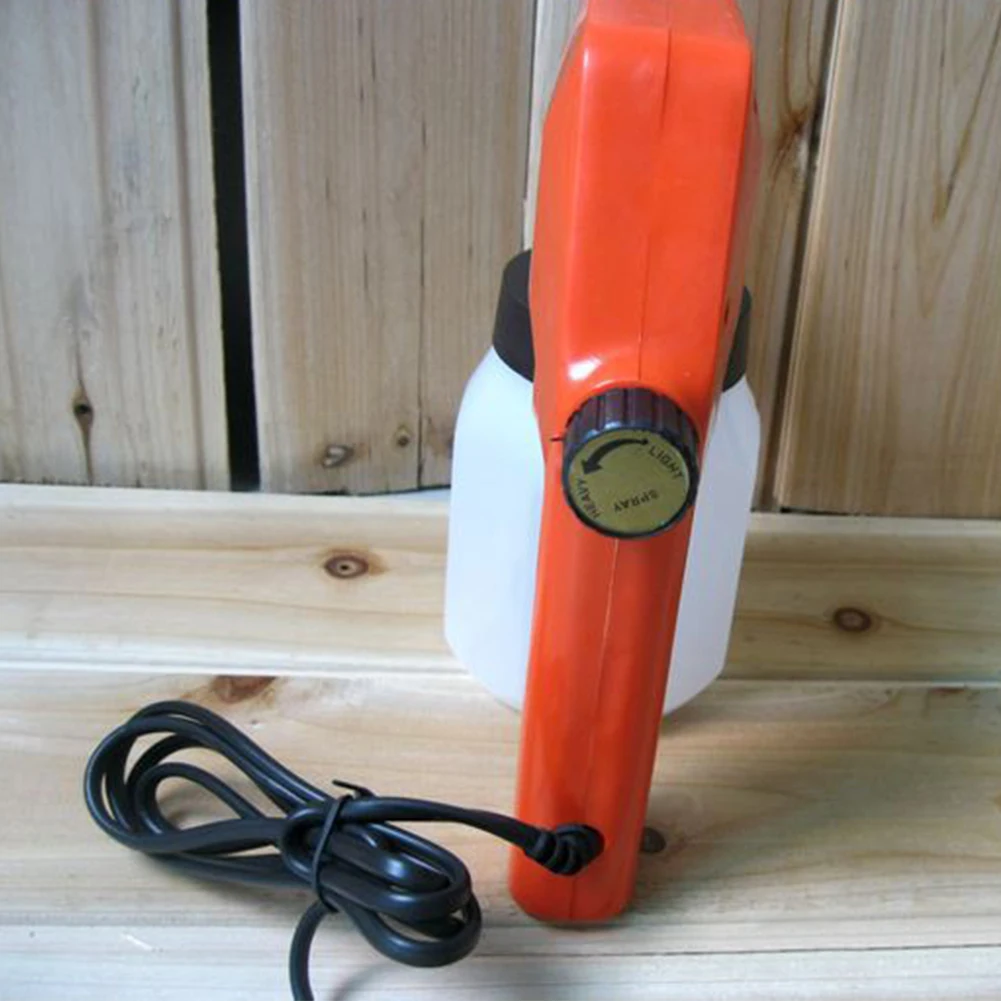

2. If the spray gun is not working properly, then try the back of the button. The method is: first spin the button and then slowly swipe till reach the minimum sound and the highest pressure. Use your hand to test pressure away 50 cm from the mouthpiece, you will feel a strong numb and vibration. (Note: after tune well, do not adjust randomly)

3. The decontamination effective distance between the nozzle and the object is 10-15cm. Operate descend with 45 degrees to remove spots with repeated spray.

Maintenance

1. Guns can continue to operate, but also need attention to moderate, in case of overheating damage.

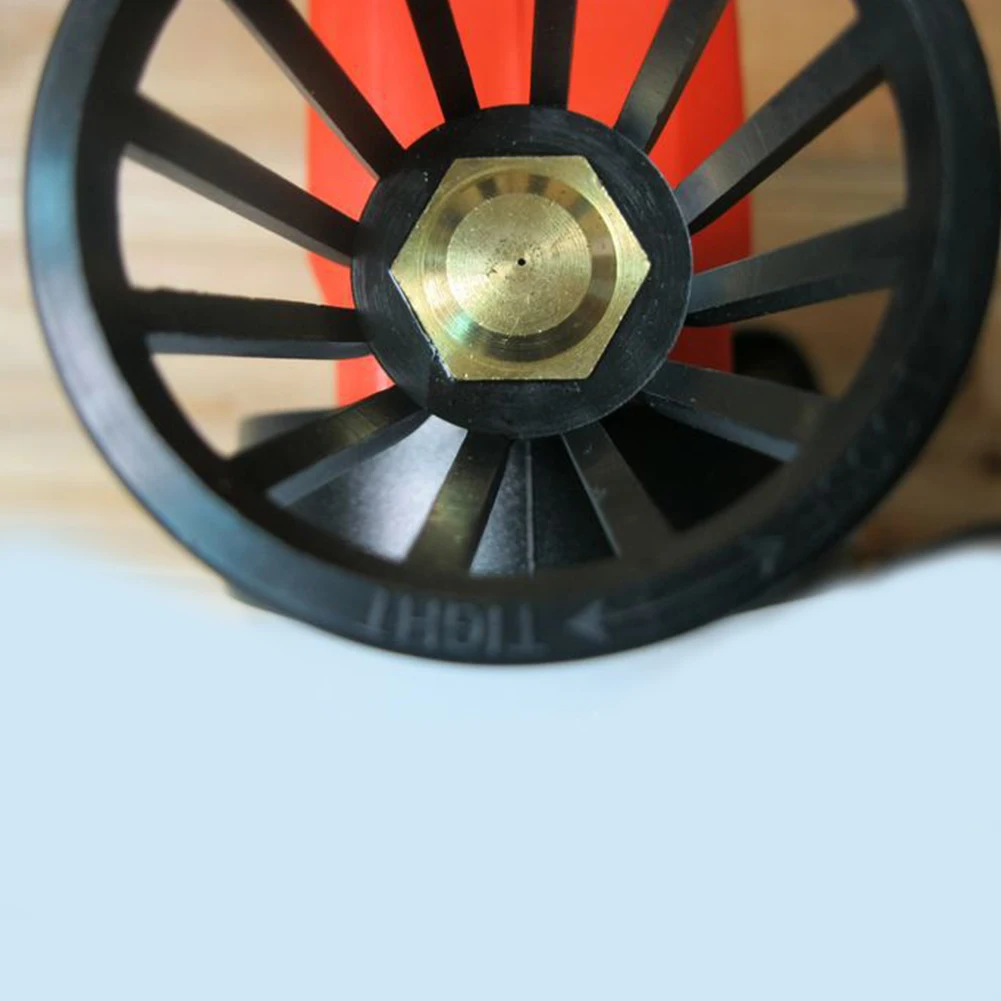

2. The sound is normal but no jet, or spray powerless, loose, which is caused by nozzle block, then screw the nozzle, clean up the debris, or gently twist through a nice needle from the inside out.

3. The injection is normal, but the pressure is insufficient or unstable, you can open the handle cover, check the pump tight gong wire to see if it is loose.

4. After completion of operation, spray a few seconds till the liquid is run out, and then oil a few drops and then spray a few seconds.

5. After each work is completed, clean the tank with thinner (such as banana water), spray a few times with a diluent till the spray paint is run out. So the gun nozzle will not be blocked when using time.

Note:

1. he gun is a high pressure impact gun, do not spray on the human body.

2. Put in a place that child can not reach.

3. The Gun is a special product, no refund or change as soon as the gun is used with paint.
