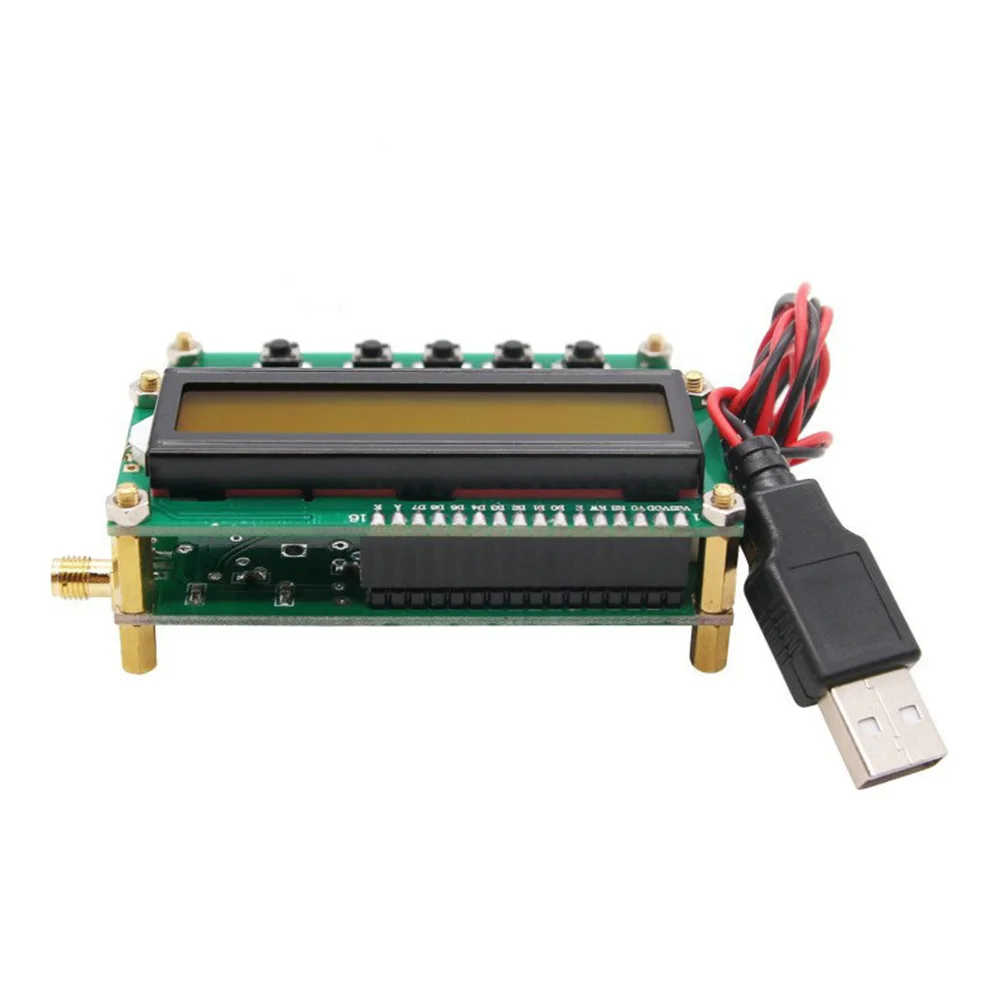

35 МГц-4000 МГц генератор сигналов D6 ADF4351 ЖК-дисплей цифровой высокоскоростной RF VFO стабильный V1.02 HXY 50 Ом

Features:
Adf4351: Traditional VCO PLL 6 series high speed bistable circuit.
Wave: The amplitude of the fundamental wave does not change much.
The output is obtained by frequency division, and the output is a square wave.
Core components: avr mega8 microcontroller, cost-effective single-chip, is a low-profile version of the commonly used m16.
Regulated source: There is a 2.56v regulated source in the peripheral ADC, which is not available in other mid-range microcontrollers.
This product uses the single-chip microcomputer as the core, which greatly simplifies the design, shortens the development time and saves the cost.
It provides the signal source for the channel of the device under test and analyzes the frequency-amplitude characteristics of the channel.
Please pay attention to the impedance of the measuring device.
Specifications:
Material: Metal
Color: Green

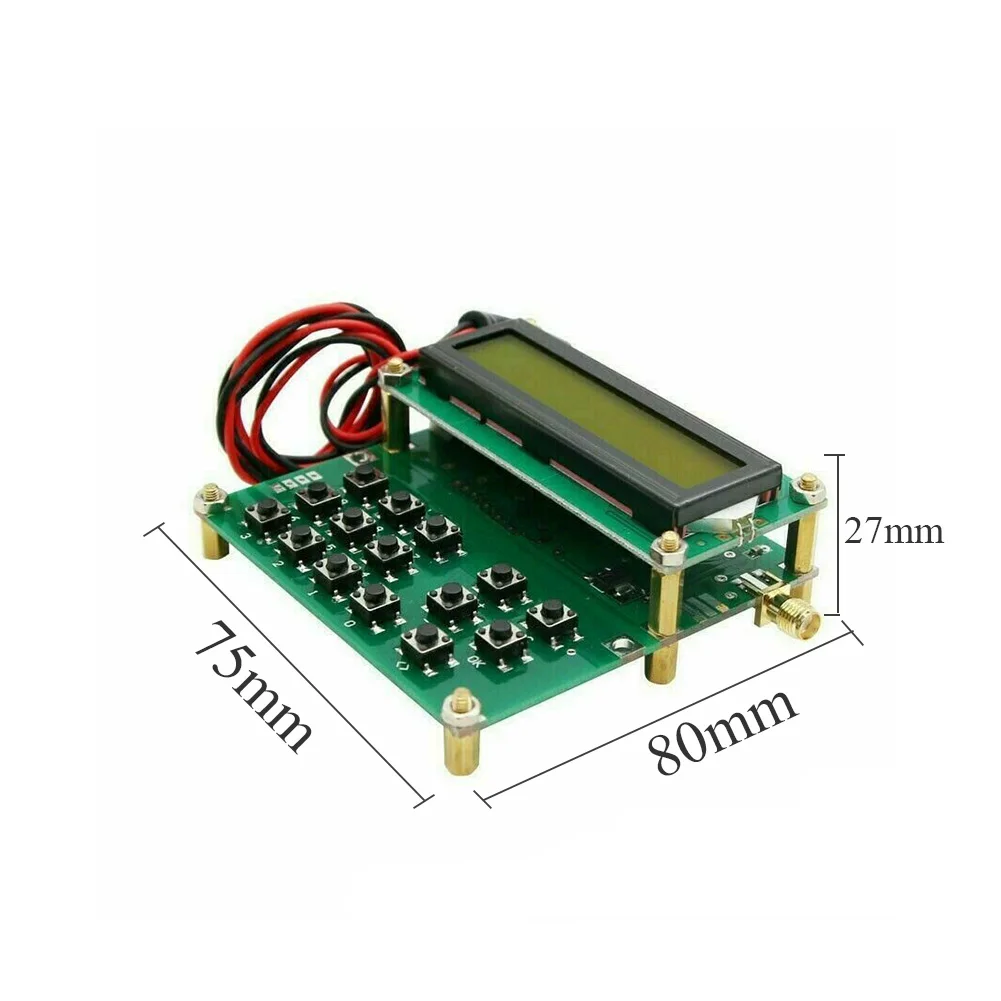

Product Size(about): 75*80*27mm
Supply voltage: DC 4.5V-5.5V
Standby current: Emission current: Output impedance: 50 ohms
Output frequency range: 35MHz-4000MHz
Output stepping: 1KHz-8KHz
Output power: -1dBm (W) 50MHZ (test power absolute value) about 1 mW
Package Included:
1 x Simple RF Source Generator
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
