DM556 2-Phase 32-Bit DSP Digital Stepper Drive
(3 pcs per lot )
The DM556 stepper drive adopts advanced features like electrical damping, anti-resonance, start-up smoothing, multi-stepping... With the input voltage of 20 - 50 VDC and output current of 0.50 - 5.60 A, it is capable of driving a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and very low motor heating.
Its multi-Stepping feature allows a low resolution step input to produce a much higher microstep output for smoother & quiet motor movement, and much lower motor heating. This feature will significantly improve the performance of your stepper control systems.
A DM556 stepper drive is easy to setup and configure via DIP switches. There are 15 resolution settings from 400 - 25600, and 7 output current settings from 0.50 - 5.60. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch.
Features:
Step & direction or CW/CCW control
DSP-based stepper control technology
Anti resonance
Automatic motor identification and self configuration
Extra low noise
Extra smooth movement
Low drive & motor heating
Maximum frequency: 200KHz
Input voltage: 20 - 50 VDC
Output current: 7 selections of 0.50 - 5.60A via DIP switches; or any value of 0.1-5.60A via software configuration
Micro steps: 15 selections of half - 128 step via DIP switches; or full - 512 step via software configuration
Automatic idle current reduction
Electrical Specifications
Connector
Microstep Resolution Selection And Current Setting
Typical Connection

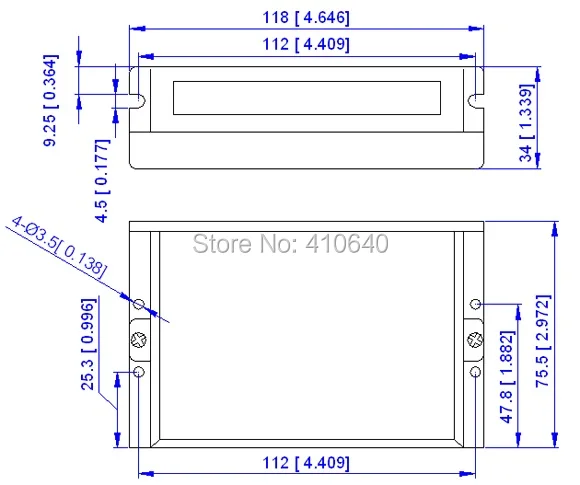

Mechanical Specification
Companion products
57HS09 (Stepper Motor)
57HS13(Stepper Motor)
57HS22 (Stepper Motor)
SPS407 (Power)
SPS407-L (Power)
RPS2410 (Power)
RPS369 (Power)
RPS488 (Power)
Real Photo:
Notice:
1: The default delivery mehod is based on free shipping by Registered Post Service.
2: Becuase there is the dlivery cost of fluctuation of theDHL,UPS, Fedex or TNT, if you are in need of these faster service, please contact our online consultant, and will offer you lowest cost for these express
3: If you are in need ofother productswith different model, please contact our online sales, will offer youbest priceandlowest delivery cost--based onGENUINE products.
| |||
|  |  |  |
 |  |  |  |
 |  |  |  |
Характеристики
- Тип двигателя
- Шаговый электродвигатель
- Питание
- DC
- Номер модели
- DM556
- Control Mode
- Step & Direction
- Max Input Frequency
- 200Khz
- Input Voltage Range
- 20 - 50 VDC
- Output Current
- 0.50 - 5.60 A
- Logic Current Range
- 7-16mA (10mA typical)
- Logic Voltage Range
- 4-5 VDC for pulse active high (default)
- Communication Type
- RS232
- Step Width
- 2,500 ns
- Isolation Resistance
- 500M Ohm
- Protection
- Over-current, over-voltage, and stall
