120 шт. проволочный разъем припой изолированный автомобильный электрический лодочный соединитель терминалы Самолет водонепроницаемый Сращивание Уплотнение Термоусадочная

Description:
Better waterproof and seal performance
Fit for confined and narrow Spaces
Shrinking Ratio is 2:1, easy to use.

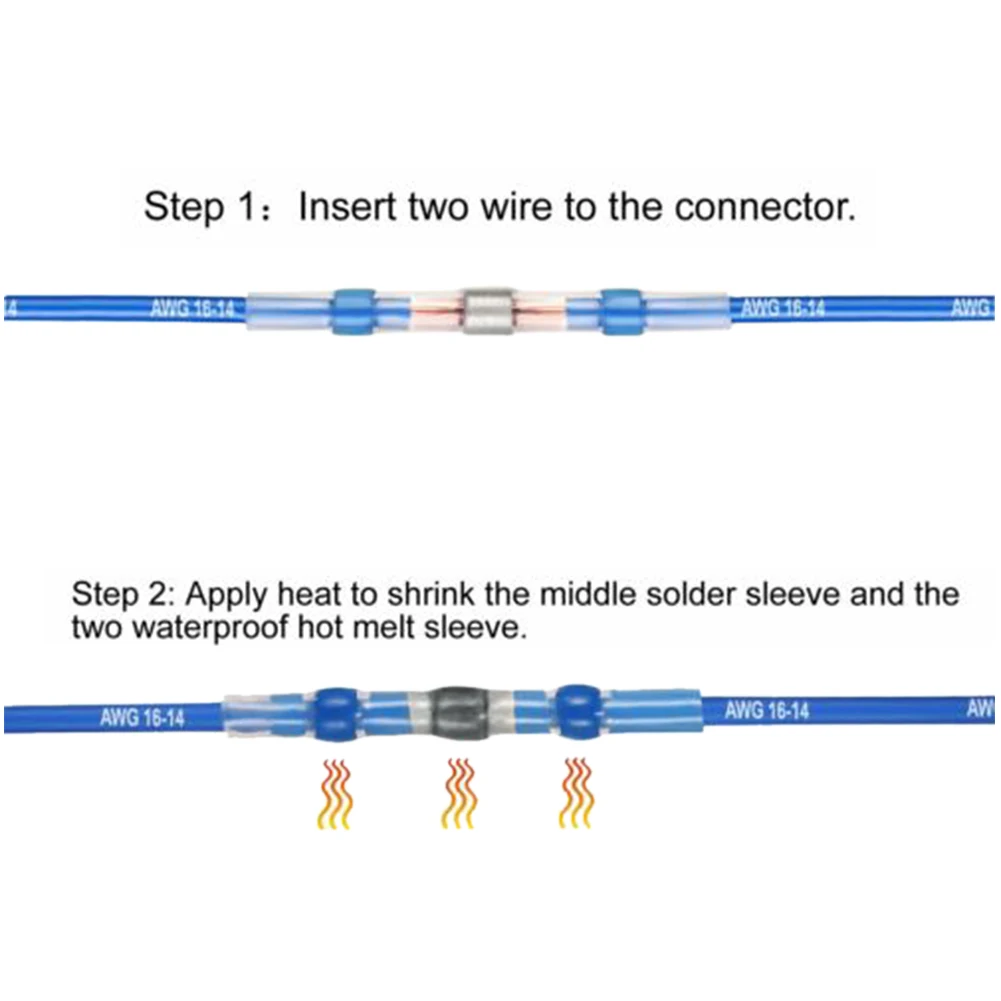

Can be bent after connection and no need to crimp or solder in the confined area
Easy to Identify, Specific color for specific size, easy to pick up for use.
Specification:
Type: Wire Connector
Shrinkage ratio: 2:1
Temperature that start to shrink:60 ℃
Temperature that solder ring start to melt: 125˚C
Temperature that solder ring melt completely：138˚C
Quantity: 120pcs

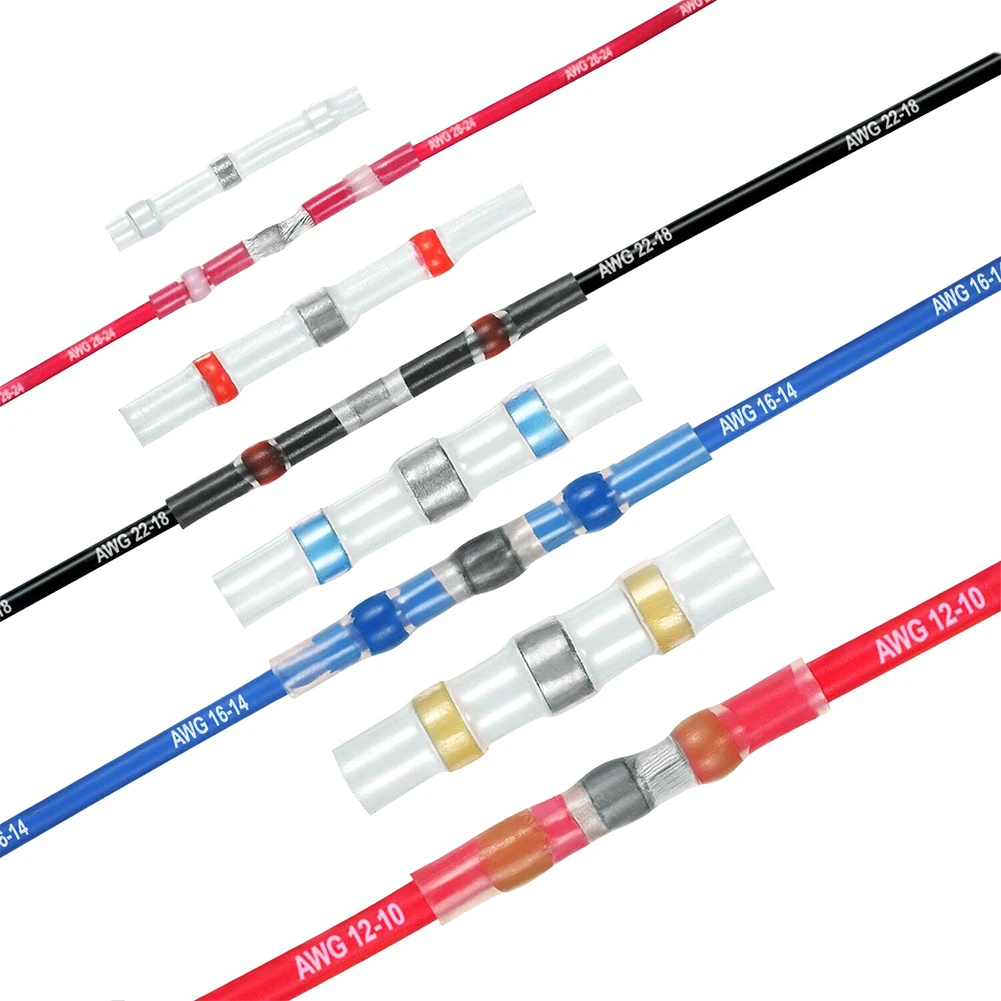

Colors, Size and Quantity:
Red connector: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm² (A.W.G.:22-18), 40PCS
Blue connector: Diameter 4.5 mm, Cable cross-section 1.5-2.5 mm²(A.W.G.:16-14), 40PCS
White connector: Diameter 1.7 mm, able cross-section 0.25-0.34 mm² (A.W.G.:26-24), 30PCS
Yellow connector: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm²(A.W.G.:12-10), 10PCS

Package included:
120PCS x Wire Connector
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-3cm differences due to manual measurement.
