1000 Вт РЧ 433 МГц беспроводной высокое напряжение и Высокая мощность водонепроницаемый Диммируемый контроллер, для Высокое напряжение pwm Диммируемый светодиодный светильник

RF controller adopts the advanced Micro-control unit, with 433MHz wireless signal to do the controlling. Input AC90-240V, output DC90-240V, It is used for controlling a variety of High voltage LED dimmable which is PWM dimmable, like high voltage strip light.
It has many advantages such as low price, easy connection, simplicity to use and others, etc. According to the customers' needs, it can realize gradual change, fadein dimming, jumping change, strobe, quick flash and other kinds of model. It is easy to take, simple to use, etc.
The power input terminal:the red wire is connected with L and black wire is connected with N.
The load output terminal: red connected to the positive pole and black connected to the negative pole.
HVDM1804 - Direction for use:1. Connect the load line first, then the power line; before power on, ensure that there is no short circuit between the connecting lines;2. The first time the controller is used, it needs to be coded. Press the switch key to check the code within 3 seconds after power-on, and the load will flicker once when the check is successful.
1 channels

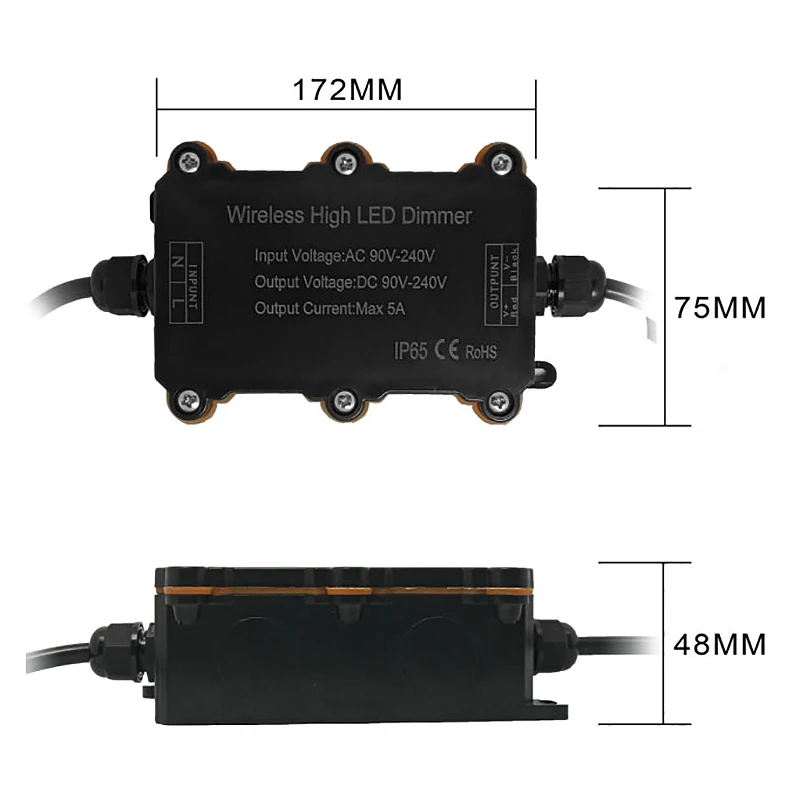

Controller dimension:172mm*75mm*48mm
Remoter dimension:95mm*40mm*13mm
Net weight:253g
Static power:Power on:0.9w at the moment,less than 0.01w later
Output current:5A
Output power:1000W

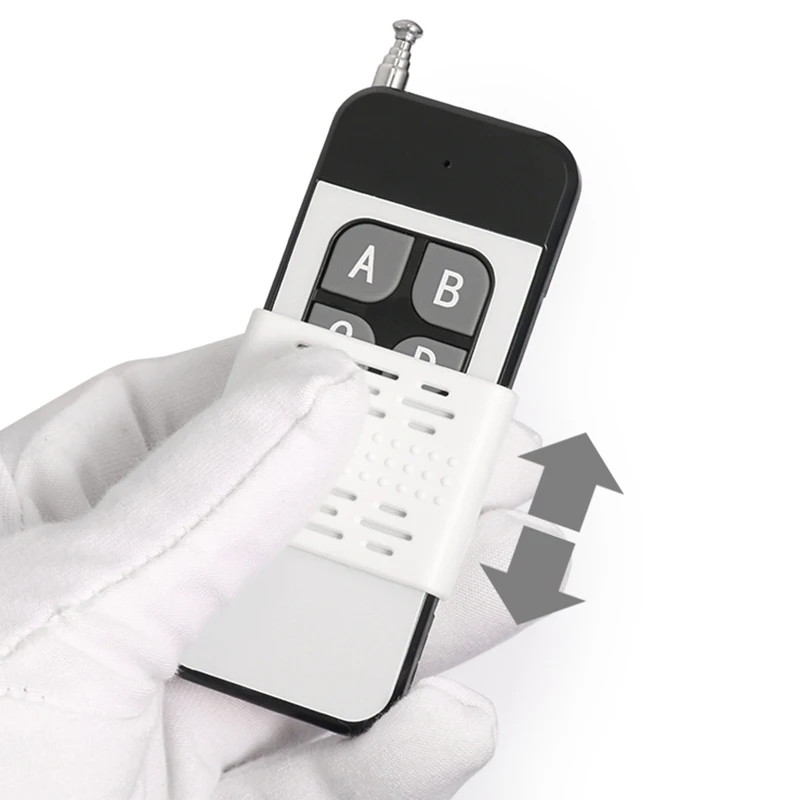

The functions of the buttons on the remote control are shown in the following table(arranged according to the position of the buttons):
A
Code/switch
Long press the code in 3 seconds after power on,and short press the code after success to perform the switch function.
B
Mode switch
Click to switch to one mode:static,burst,breathe,fade,fade,stroboscopic,1/3 stroboscopic,2/3 stroboscopic,alarm.When in the last mode,click again to return to the first mode
C
Keys +
In static mode,the key function isto increase brightness,each press,brightness increase two levels,a total of 255 brightness adjustable;The rest of the mode is to increase the speed,each press the speed to increase a level,a total of 10 speed adjustable.Long press is added continuously.
D
Keys -
In the static mode,the key function is to reduce the brightness,every press,brightness reduction two levels,a total of 255 brightness adjustable;The rest of the mode is to reduce the speed,each press the speed to reduce a level,a total of 10 speed adjustable.Long press means continuous subtraction.
colour:black
Material:Metal + plastic
Package Contents:
1 * Controller
1 * remote control
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
